Description

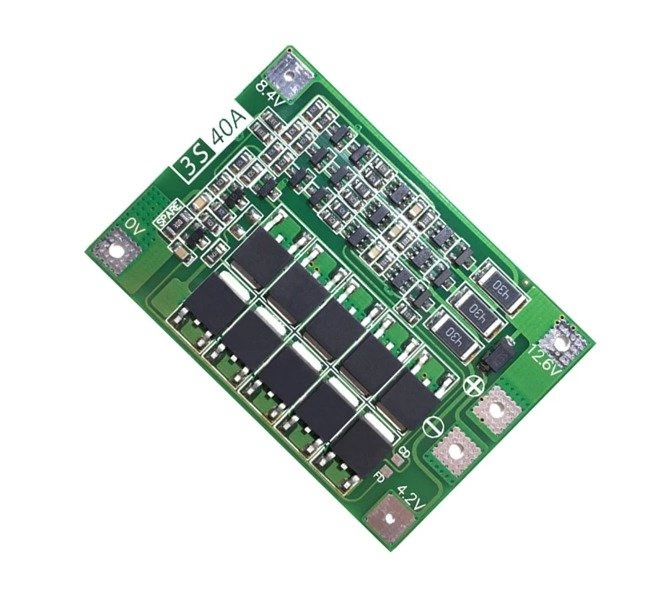

Li-ion 3S charging module – BALANCE – 12.6V – 40A

BMS 3S electronic system in BALANCE version working as a battery protection against over-discharge, over-charging and also with balancer function.

• Allows you to build a safe battery pack that does not need to be charged with special chargers for li-ion batteries.
• The 2-in-1 module was created to keep the cells in the best possible condition by not allowing them to overcharge as well as over-discharge. One module here replaces the charger and security module.
• In version 2.3, the anti-interference function has been improved, the heat dissipation has been reduced by 30% and the boot current has been increased.

More information about BMS modules, their application and how they work HERE.

NOTE!!! this module comes in 3 versions: Standard, Balance, Balance + short circut.

Product features

• Built-in balancer – 100mA discharge current
• Protection against overcharging.
• Over-discharge protection.
• Can be used for a variety of lithium cells 3.7V.
• Compact size and lightweight.
• Ensures the safety of the battery

Technical data

• Charging voltage: 12.6V – 13.6V
• Maximum discharge current: 40A
• Continuous charging current (upper limit): 20A
• Dimensions: 60x41x3.4mm

Included

• BMS PCM PCB charging and protection module for Li-Ion cells – 3S – 12.6V – 40A – 1 pc.
