Description

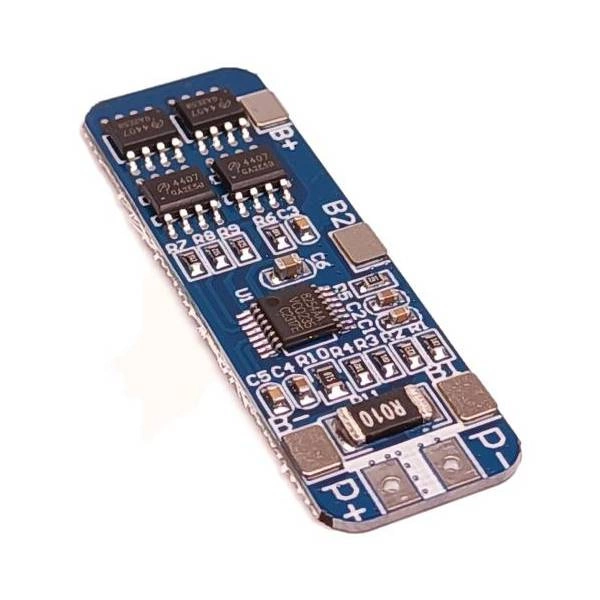

Li-ion 3S 12V 6-8A charging module

Electronic system that protects batteries from discharging and at the same time a charger for these batteries.

Allows you to build a safe battery pack that does not need to be charged with special chargers for li-ion batteries.

The 2-in-1 module will keep the cells in the best possible conditions without allowing them to overcharge as well as over-discharge. One module here replaces the charger and security module.

More information about BMS modules, their application and how they work HERE.

Product features

• Short circuit protection.
• Protection against overcharging.
• Excessive Discharge Protection.
• Overcurrent protection.
• Can be used for a variety of lithium cells 3.7V.
• Compact size and lightweight.
• Safety assurances battery.

Technical data

• Size: 54x18x4mm
• Maximum discharge current: 10A
• Overload voltage detection: 4.25-4.35V ± 05 V
• Over-discharge voltage detection: 2.3-3.0V ± 05V
• Maximum operating current: 5A-8A
• Undetermined current: 9A-10A
• Operating temperature: -40 ~ 50 degrees
• Storage temperature: -40 ~ 80 degree
• Resting current: pon. 6uA
• Internal resistance: pon. 60mΩ
• Lifetime: pow. 30,000 hours

Included

• Li-ion 3S 12V 6-8A charging module – for 18650 cells – 1pc.
