Description

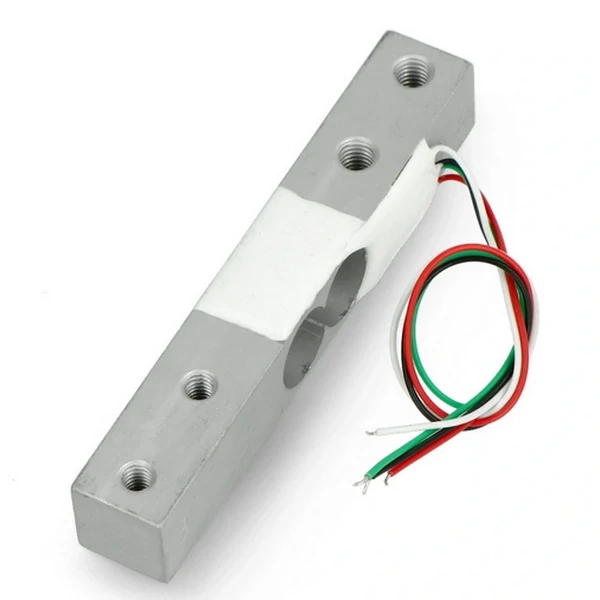

YZC-131 10kg strain gauge beam

Strain gauge beam operating in the 10 kg range. The connection cable is terminated with the ends with the insulation removed, and its length is 20 cm.

Technical data

• Range: 10kg
• Cable length: 20cm
• Material: aluminum
• Dimensions: 80 x 13 x 13mm
• Weight: 30g
• m4 size holes

Connecting

• Red wire: input voltage positive pole (+)
• Black wire: input voltage negative pole (-)
• Green wire: output signal +
• White wire: output signal –

Included

• Strain gauge beam NA27 10kg – 1 piece.
