Description

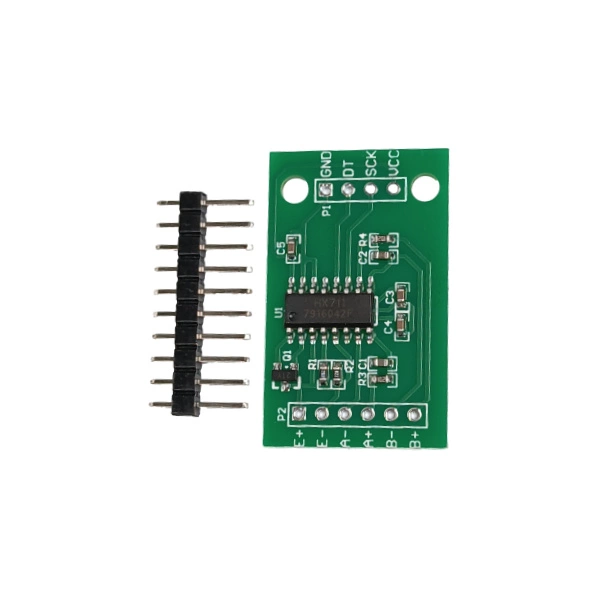

HX711 Scale Module – Strain Meter for ARDUINO

Strain gauge module with a high-quality 24-bit analog-to-digital converter based on the XH711 chip for operation directly from the sensor bridge. The module will find application in arduino and other projects.

Technical data

• Supply voltage: 2,6 – 5,5V
• Number of input channels: 2
• 24-bit converters
• Built-in low-noise preamplifier with selective amplification (32, 64 and 128)
• Built-in voltage stabilizer
• No external oscillator required
• Refresh rate: 10Hz
• Dimensions: 20.5x34mm.
• Simple digital control and serial interface, no programming required
• Operating temperature: 20 – 85 °C

Included

• HX711 pressure meter module – 1 pc.
• Pins to be soldered in
