Description

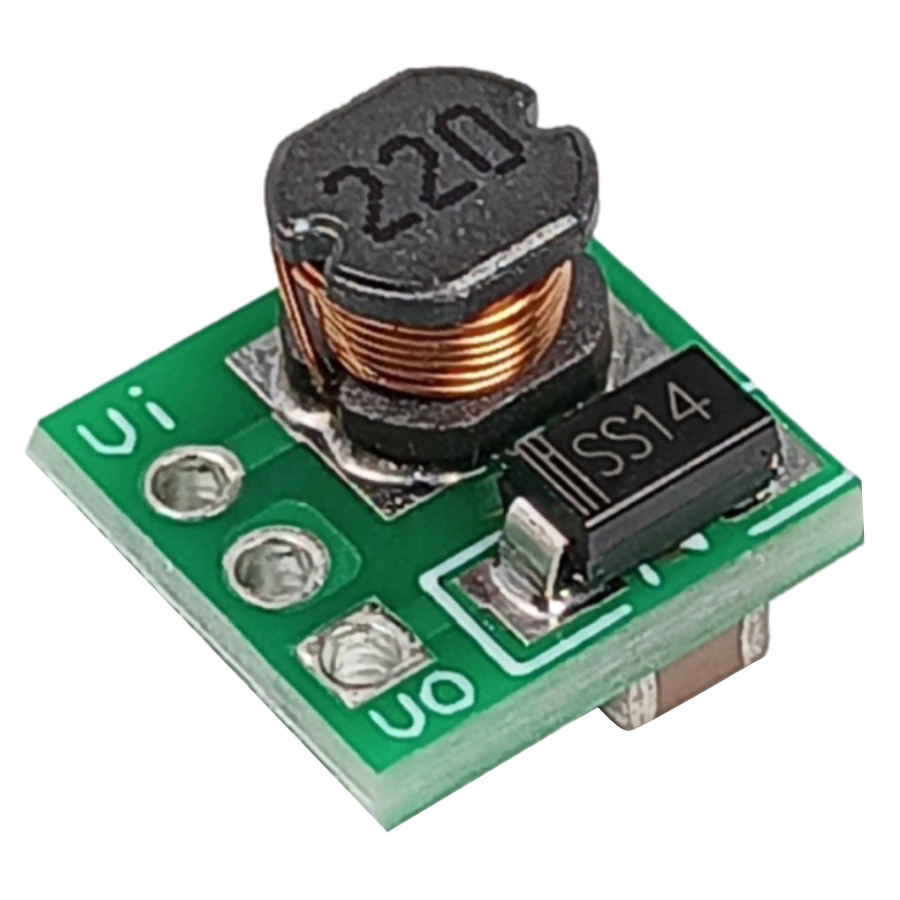

Mini Step-Up Stabilized Power Supply Module

Small-sized stabilized power supply module dedicated to use in various types of projects. This small inverter with step-up characteristics, and therefore raising the voltage, starts working, already from 0.9V.

Technical data

• Input voltage: 0.9-3.3 V
• Output voltage: 3.3V
• Maximum output current: 480mA
• Starting voltage: 0.8 V, output current: 20 mA
• Input voltage: 1 – 1.5 V, current 20 – 60 mA
• Input voltage: 1.5 – 2 V, current 120 – 160 mA
• Input voltage: 2 – 3 V, current 160 – 450 mA
• Input voltage: > 3 V, 380-480 mA current
• Operating frequency: 25 KHz
• Pin spacing: 2.54mm
• Dimensions: 11×10.5×7.5 mm

Included

• Mini Step-Up 0.9-3.3V to 3.3V Stabilized Power Supply Module – 1 piece.
