Description

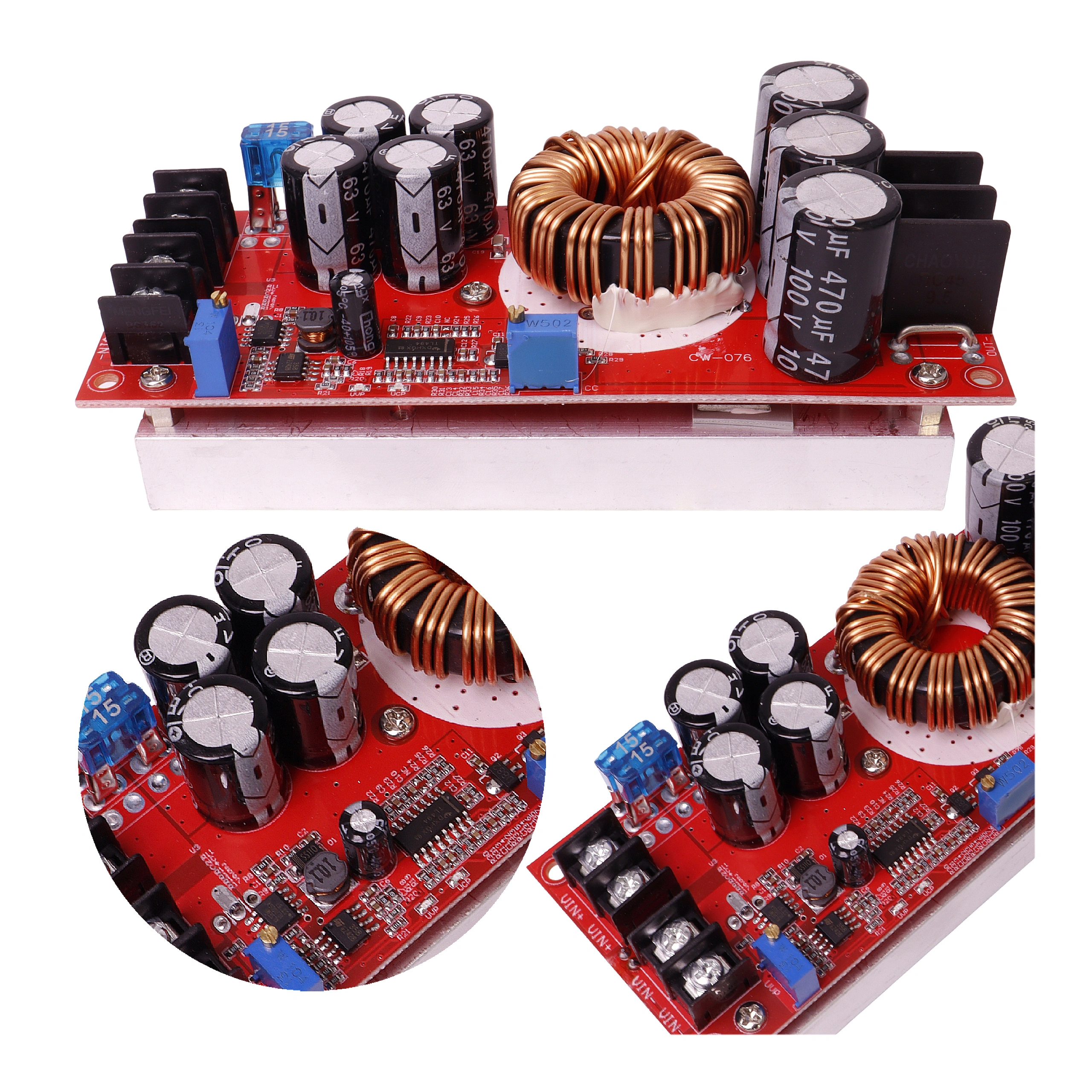

DC-DC converter 1200W 20A – STEP-UP 8-60V / 12-80V

High voltage DC – DC converter with high current with adjustable output voltage and high efficiency (> 95%). The DC converter operates on an input supply of 8V to 60V DC and has the ability to adjust the output voltage via a built-in potentiometer from 12V to 80V. This allows you to power any circuit with a higher voltage than you have. The circuit is perfect for powering all kinds of DIY circuits, electric bikes, power LEDs, devices with microcontrollers, Arduino modules, etc.

Product features

• The inverter has a sizable heatsink, but if the currents exceed the values of 10A then active cooling should be used, so a fan that can be plugged into a dedicated input on the board „12VFAN”. On this output there will be 12V voltage for the fan automatically when the temperature, or current increases.
• The product has STEP – UP characteristics, so with a lower input voltage, it is possible to obtain a higher voltage at the output by adjusting the „CV V-ADJ” potentiometer”.
• An additional advantage of the inverter is the ability to set the maximum current over the entire operating range after another built-in potentiometer „CC A-ADJ”. Thanks to this, the system will disconnect when the current value exceeds the set threshold.
• Another built-in feature is the ability to set a minimum input voltage below which the inverter will disconnect. This protection is extremely useful when the system is powered, for example, from lithium batteries (Li-Ion / Li-Pol), rechargeable batteries, or other cells – which cannot be discharged below a certain level.

Technical data

• Input voltage: 8V – 60V
• Output voltage (adjustable): 12V – 80V
• Input current: max 20A
• Output current: max 20A
• Output power: 1200W
• Input fuse: 30A
• Efficiency up to 95%
• Operating temperature: -45C – +85
• Resting current: 15mA
• Inverter: DC-DC
• Dimensions (L. x width. x height.): 133mm x 52mm x 43mm

Video materials

Included

• DC-DC converter 1200W – 1 piece

Note!

• Incorrect connection of power supply polarity causes damage to inverter
• This device is for experienced do-it-yourselfers, basic electronics knowledge and soldering skills are required. The company is not responsible for damages resulting from lack of soldering skills or poorly made electrical installations.
• Check the output voltage and adjust with the potentiometer to the correct one and only then connect the receiving device.
