Description

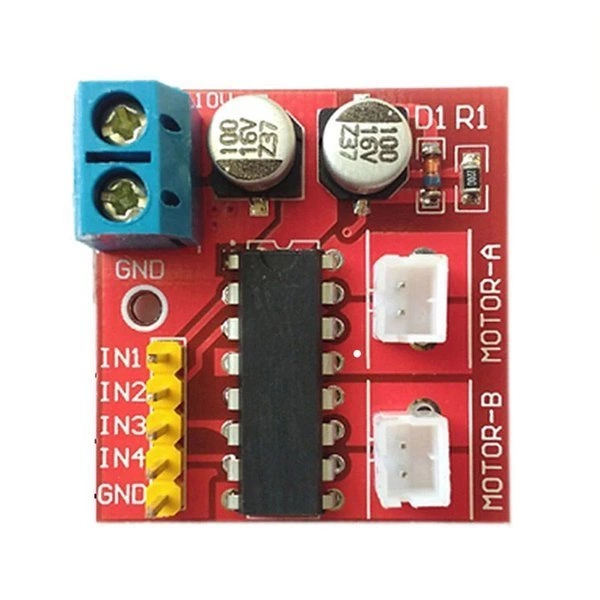

MX1919 controller module for DC motors – H-bridge

MX1919 controller module with H-bridge is designed for high-power DC motors enables control of two DC motors or one two-phase stepper motor simultaneously.

The H-bridge is an electronic circuit that allows you to control the direction of DC motors. Module used to control motors in robotics, to control lighting, in cooling systems for DC fans.

The module has a built-in TSD circuit to protect against overheating.

Technical data

• The module allows control of two DC motors
• Supply voltage: 2-10V
• Total current consumption max: 2.5A
• Resting current: 0.1uA

How to Control the MX1919 Bridge

Included

• Controller module 2.5A – 2-10VDC – for DC and stepper motors – H-bridge – 1 piece
• Wires – 2 pcs
