Description

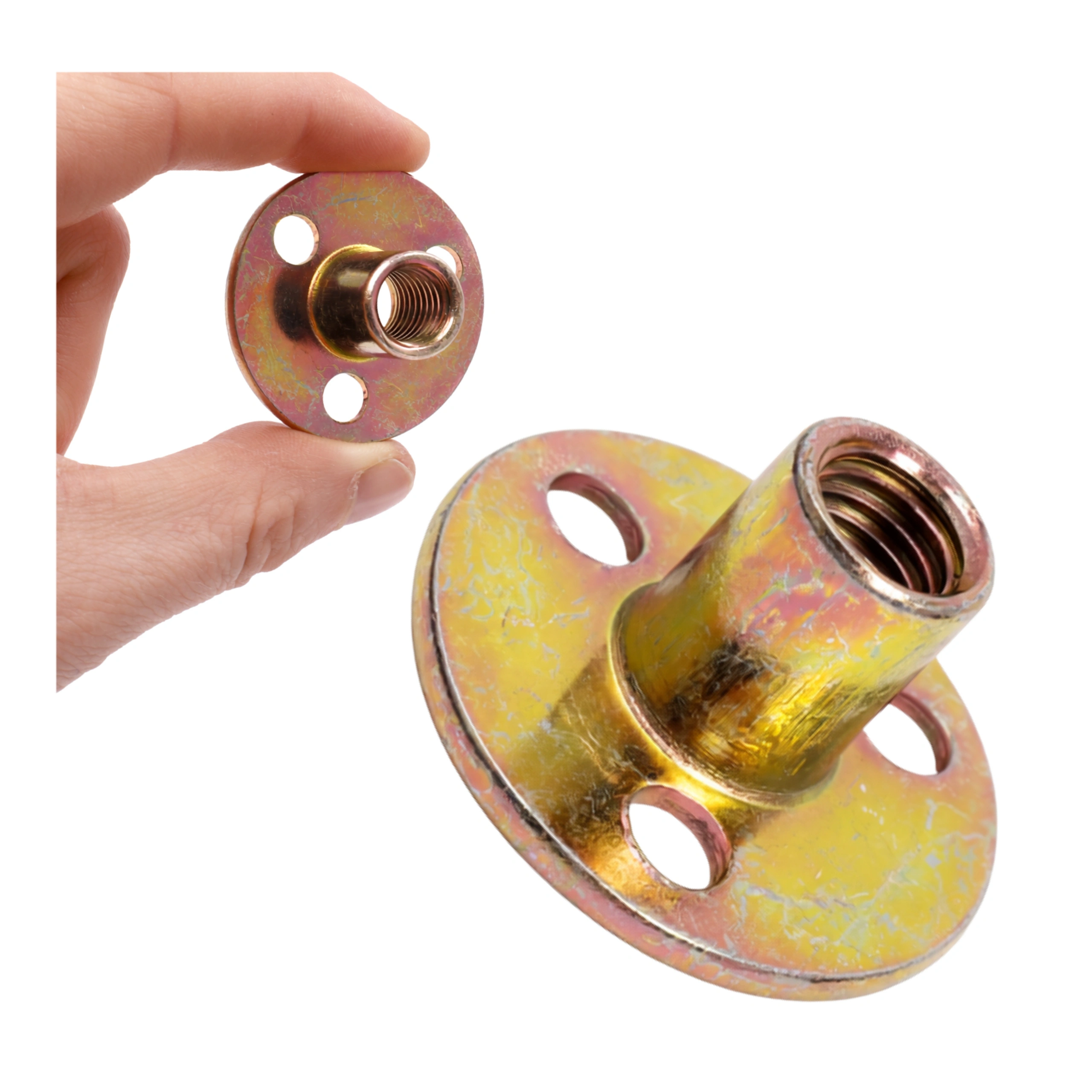

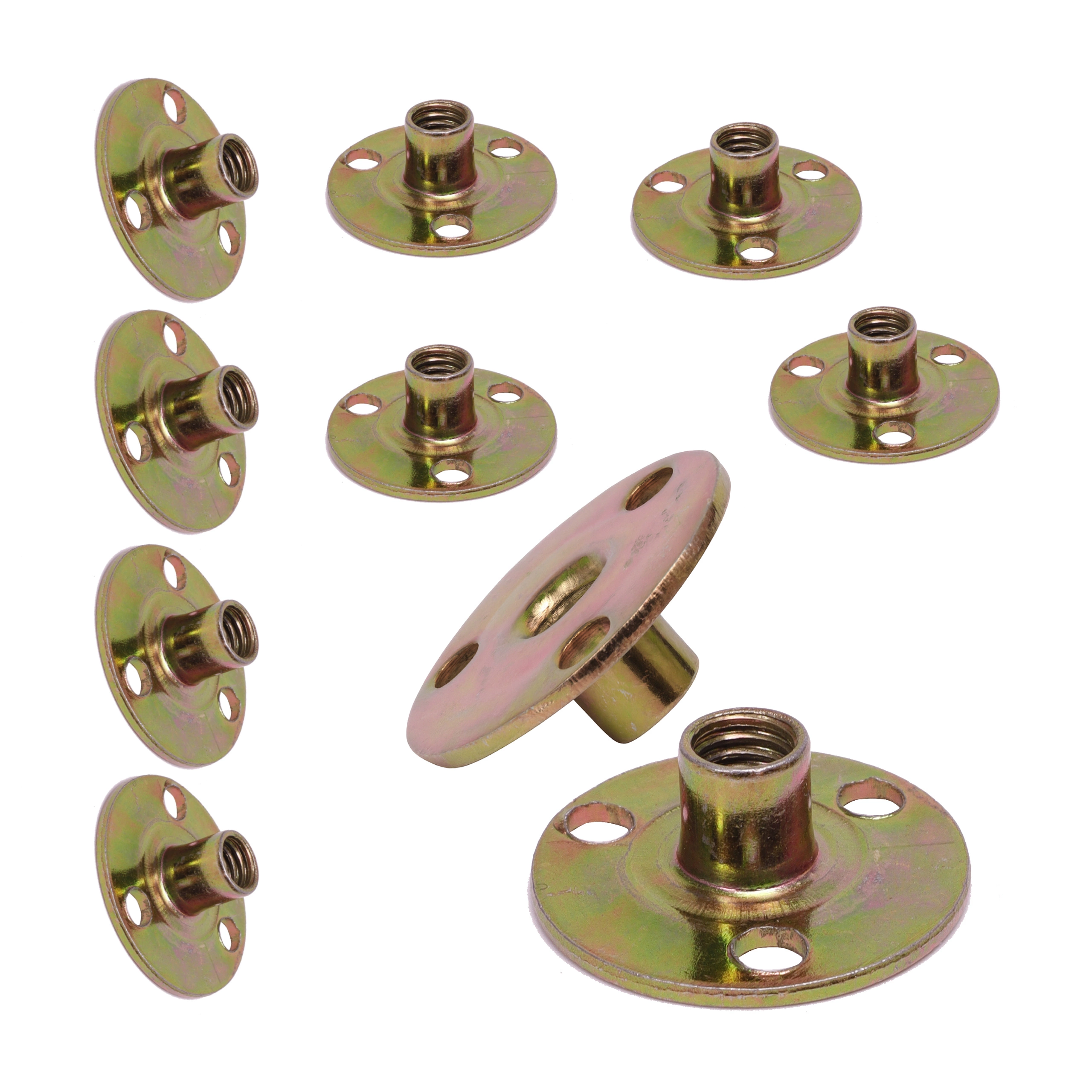

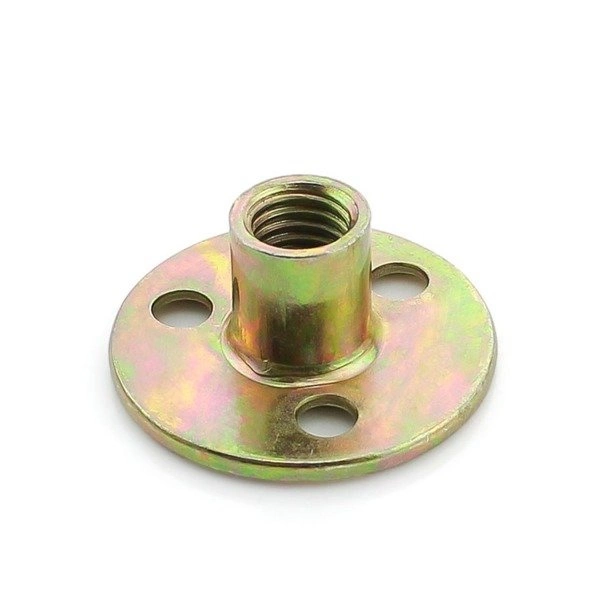

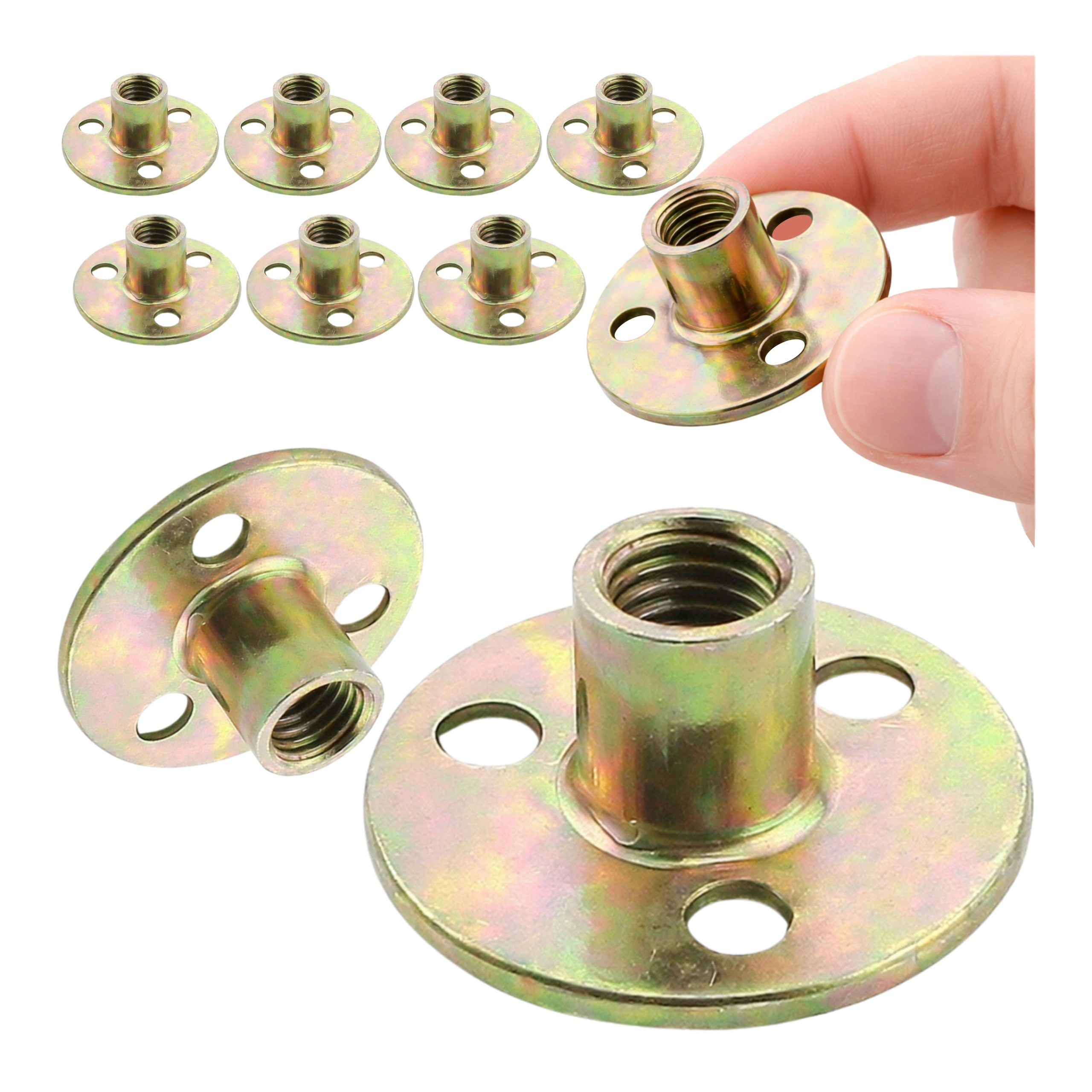

M10 lock nut with flange – 3-hole

M10 lock nut with flange and 3 holes is used for various types of fasteners. Secures the attached component. The inner hole is tapped and suitable for screws with M10 metric threads.

Technical data

• Diameter – M10*1.5
• Metric threads: triangular
• Flange hole diameter: 8 mm
• Outer diameter of threaded sleeve: 13 mm
• Length of thread sleeve: 14 mm
• Total height of the nut: 16.5 mm
• Flange diameter: 36 mm
• Flange thickness: 2.5 mm
• Diameter of three mounting holes: 5 mm

• Weight: ∼30 g

Included

• M10 lock nut with flange – 3-hole – 1 piece
