Description

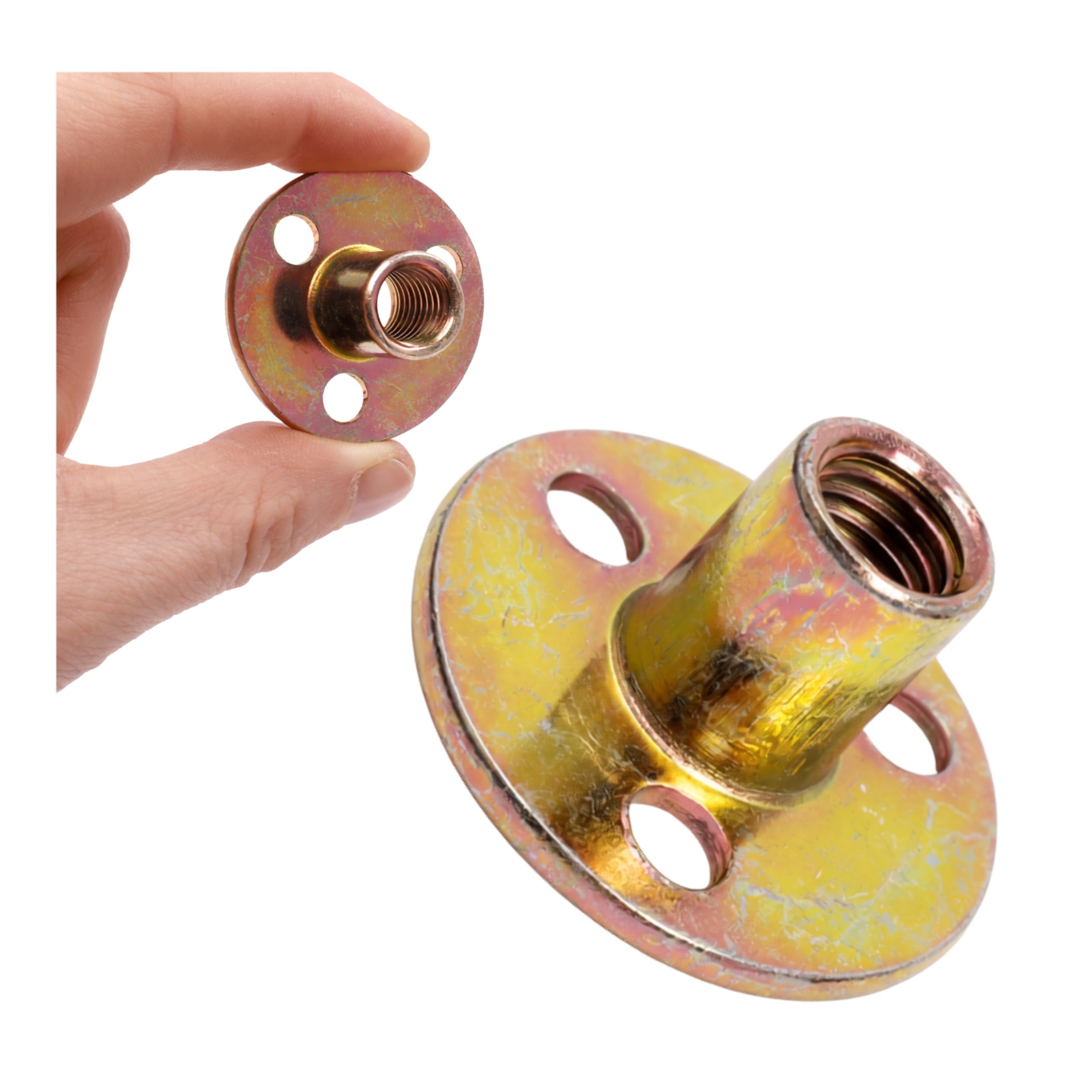

Lock nut M6 6x36x2.5 with flange – 3-hole

M6 lock nut with flange and 3 holes is used for various types of fasteners. Secures the attached component. The inner hole is tapped and suitable for trapezoidal screws and shafts on M6 threads.

Technical data

• Diameter – M6 – 6 mm
• Metric threads: triangular
• Flange hole diameter: 5.5 mm
• Outer diameter of threaded sleeve: 12 mm
• Length of thread sleeve: 15 mm
• Total height of the nut: 16.5 mm
• Flange diameter: 36 mm
• Flange thickness: 2.5 mm
• Diameter of three mounting holes: 5 mm
• Weight: 26 g

Included

• Lock nut M6 with flange – 3-hole- 1 piece
