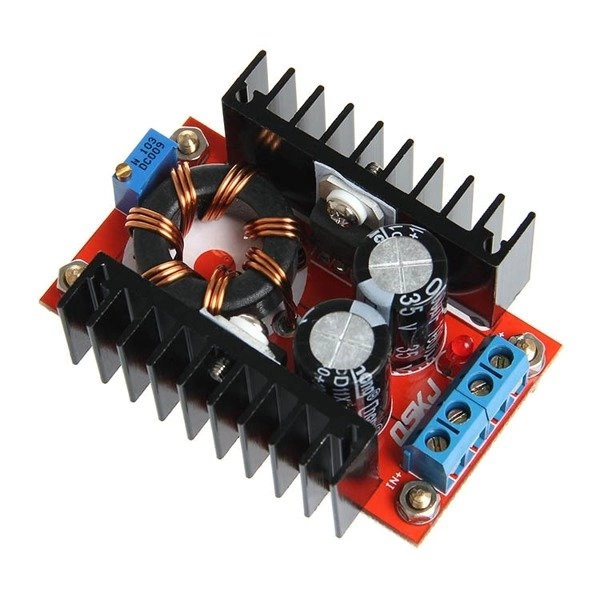

DC-DC 150W inverter with adjustable voltage

High-current DC – DC 150W inverter with adjustable output voltage.

• The high efficiency (> 94%) DC converter operates on an input supply of 12V to 30V DC and has the ability to adjust the output voltage via a built-in potentiometer from 12V to 32V.
• The product has STEP – UP characteristics, so with a lower input voltage it is possible to obtain a higher voltage at the output by adjusting the potentiometer.
• When the output power exceeds 100W, additional cooling of the system is required.
• Low idle current consumption of only 25mA. Power supply is indicated by the lighting of a red diode.

Technical specifications DC-DC 150W

• Output voltage ( adjustable) 12V – 32V
• Input voltage 12V – 30V
• Input current max 16A
• Output current max 10A
• Output power 100W – above that additional cooling is required
• Efficiency > 94%
• Operating temperature -45C – +85
• 25mA idle current
• DC-DC converter
• Dimensions:length.- 65mm, width.- 50mm, H.- 24mm

NOTES for 150W DC-DC converter

• Incorrect connection of power supply polarity causes damage to inverter
• This device is designed for experienced do-it-yourselfers, basic knowledge of electronics and soldering skills are required.
• The company is not responsible for damages resulting from lack of soldering skills or poorly made electrical installations.
• Check the output voltage and adjust with the potentiometer to the correct one and only then connect the receiving device.
