Description

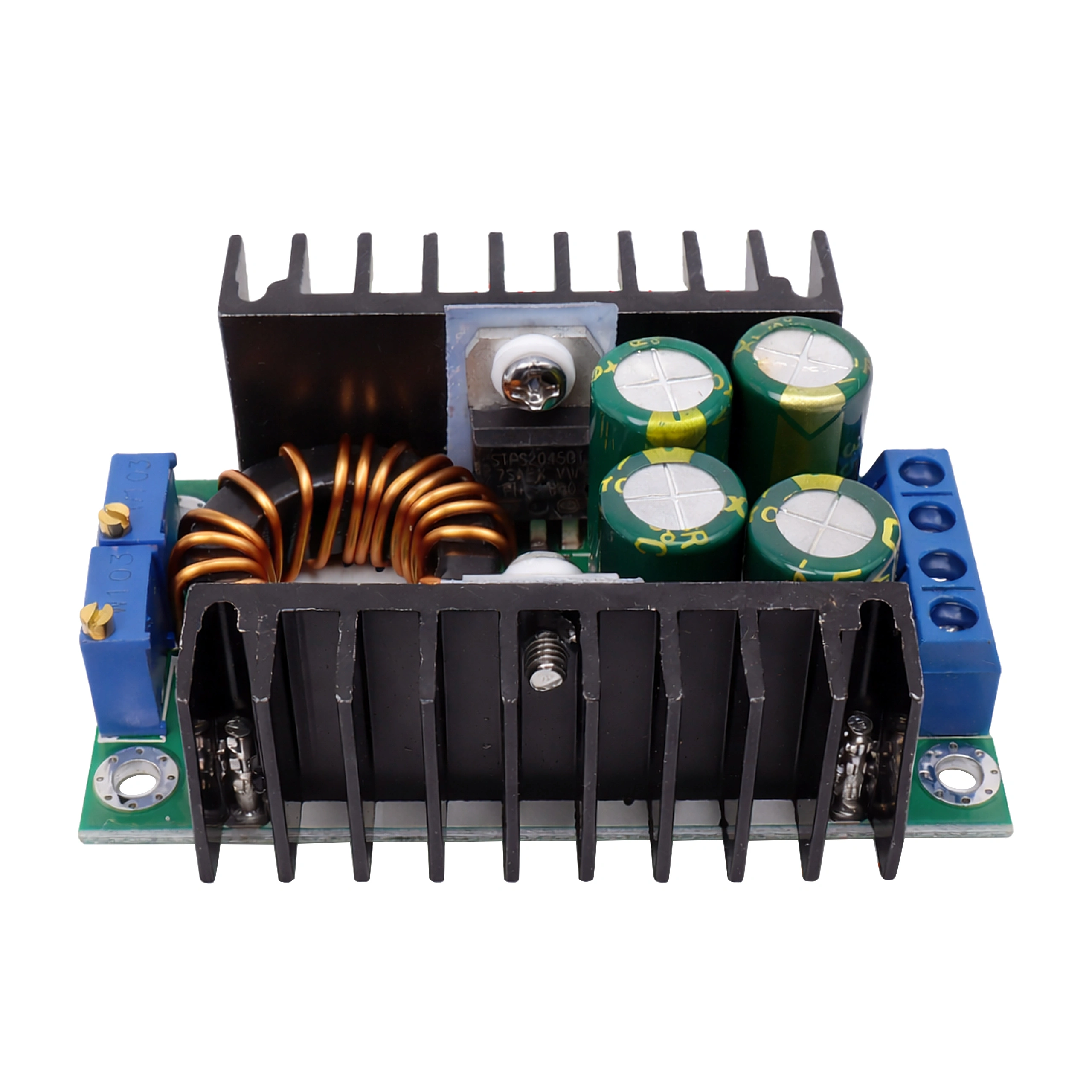

Step-Down Inverter XL4016 – 250W – Ideal solution for precise voltage reduction

Hello, technology lover! We present to you Step-Down Inverter XL4016 – a reliable and efficient device that allows you to precisely reduce the input voltage to a range of 1.2V-30V. Using this inverter guarantees stability and safety for your equipment.

The inverter is characterized by maximum power of 250W i maximum current of 8A. Thanks to the stepless voltage adjustment with the multi-turn potentiometer, you can adjust the voltage value according to your needs. The converter has input voltage of 4-30V DC and output voltage of 1.25V – 30V DC.

It is worth noting that the converter module has aRK IN – OUT connectors and switching frequency: 180 KHz. The operating temperature is from -40 to 85*C, making the device resistant to extreme conditions.

To monitor the parameters at the output of the converter, we recommend voltmeter and ammeter modules. In the set you get 250W 1.2V-30V 8A voltage step-down converter – XL4016 – STEP-DOWN – 1pc.

Two-color module 100V – 10A – is the ideal solution for monitoring parameters at the inverter output.

• Input voltage 4-30V DC
• ARK IN – OUT Connectors
• Infinitely adjustable voltage with multi-turn potentiometer: 10K Ohm
• Output voltage 1.25V – 30V DC
• Maximum power 250W
• Operating temperature of the module 65*C at high load, active cooling is recommended
• Maximum current 8A
• Operating temperature -40 to 85*C
• Switching frequency: 180 KHz
• Dimensions 60mm x 42mm x 27mm

The inverter has a precise multi-turn potentiometer for adjustment, which does not work on the full scale of adjustment, but only in a certain part of it. If the inverter does not respond to turning the potentiometer, please turn the potentiometer until you feel a slight mechanical resistance to one side or the other.

Order now and enjoy the safety and stability provided by the Step-Down Inverter XL4016!
