Description

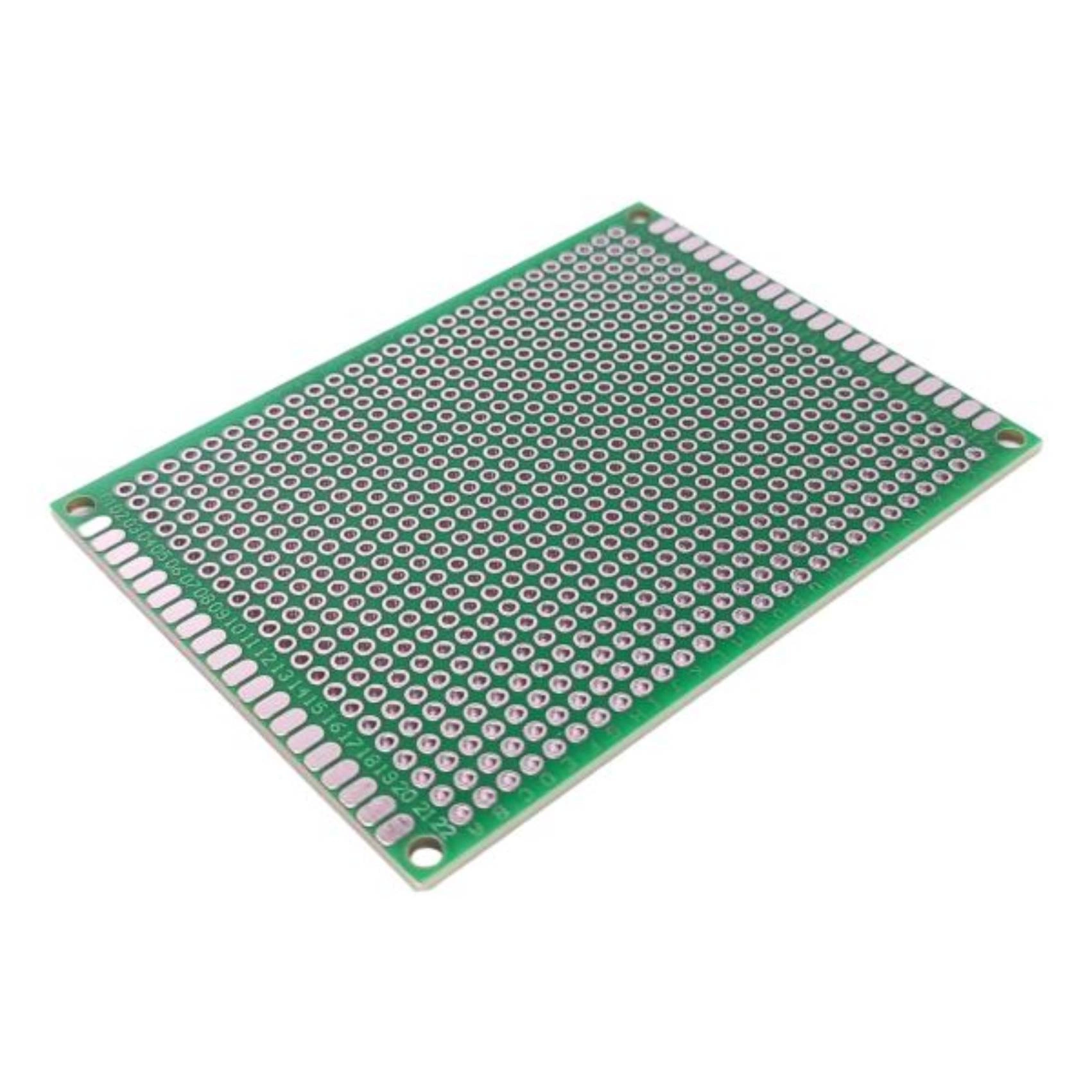

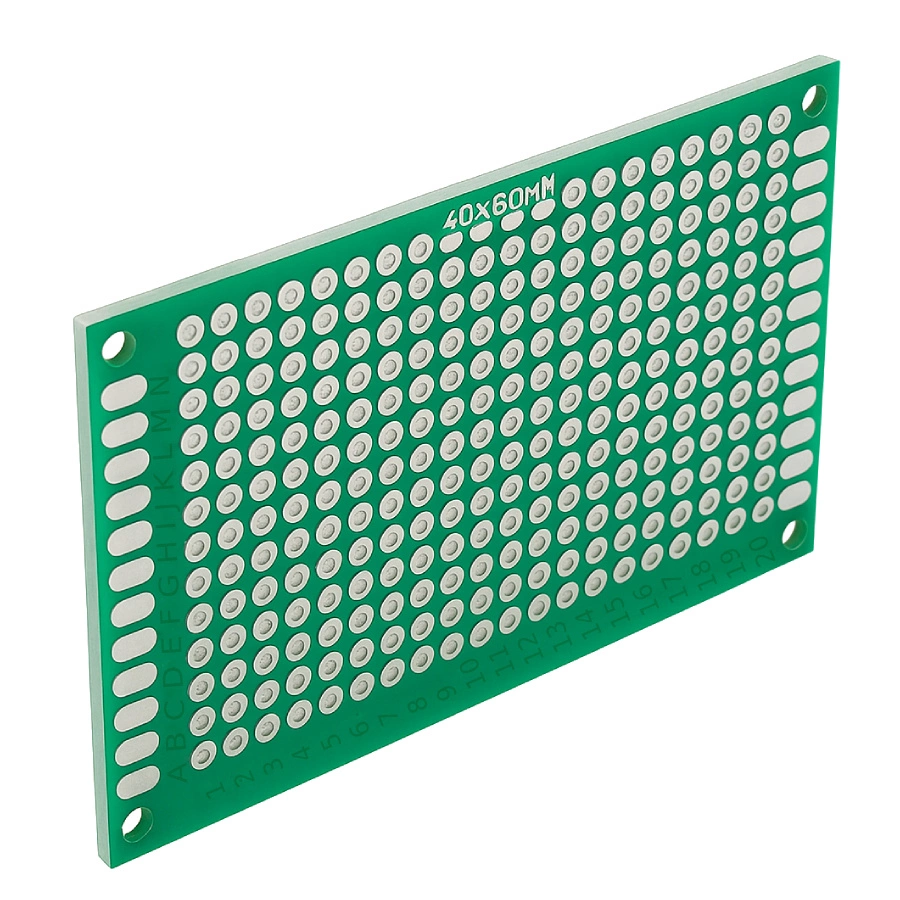

Universal double-sided board 40x60mm – PI23Z – PCB

Universal 40x60mm board allows you to construct any electronic circuit. Double-sided plate with metallization of standard holes with 2.54mm raster allows simple and fast installation of electronic components.

We will assemble and disassemble any electronic circuit on a PCB board np.:

• gold-pin strips
• all kinds of IDC connectors
• dIP and DIL sockets for integrated circuits (both sheet and precision)
• lEDs
• rectifier system
• bridge
• transistor
• stabilizer
• integrated circuits in DIP housings
• capacitor
• resistor
• etc.

Product features

• They will come in handy when building prototypes and in short production runs.
• Suitable for creating electrical, electronic circuits, prototypes using through-hole components (THT).
• Useful for soldering components on the top or bottom side of the board.
• An integral part of every prototype and workshop.

Technical data

• plate dimensions: 40 x 60 mm
• insert thickness: 1.6 mm
• hole spacing: 2.54 mm
• double-sided with metallized holes
• double-sided soldermask

Included

• Universal double-sided board 40x60mm – PI23Z – PCB – 1pc.

Related products

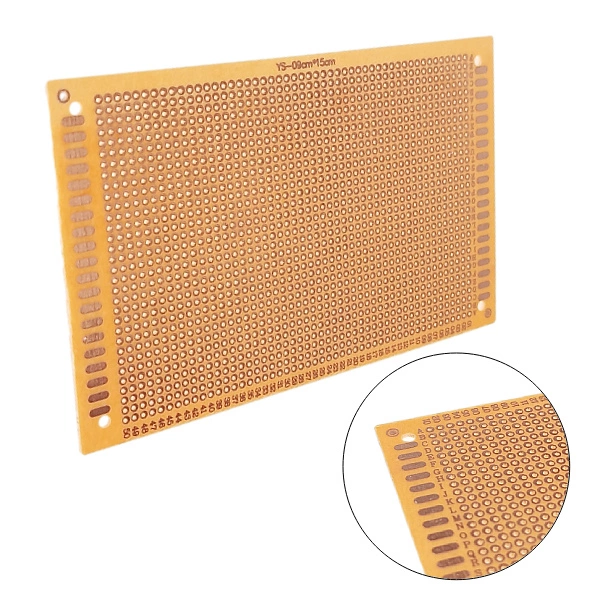

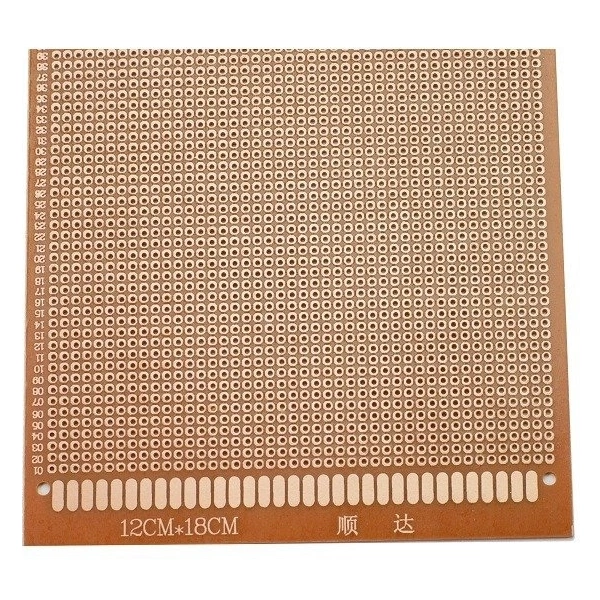

• Other contact plates available in our store
