Description

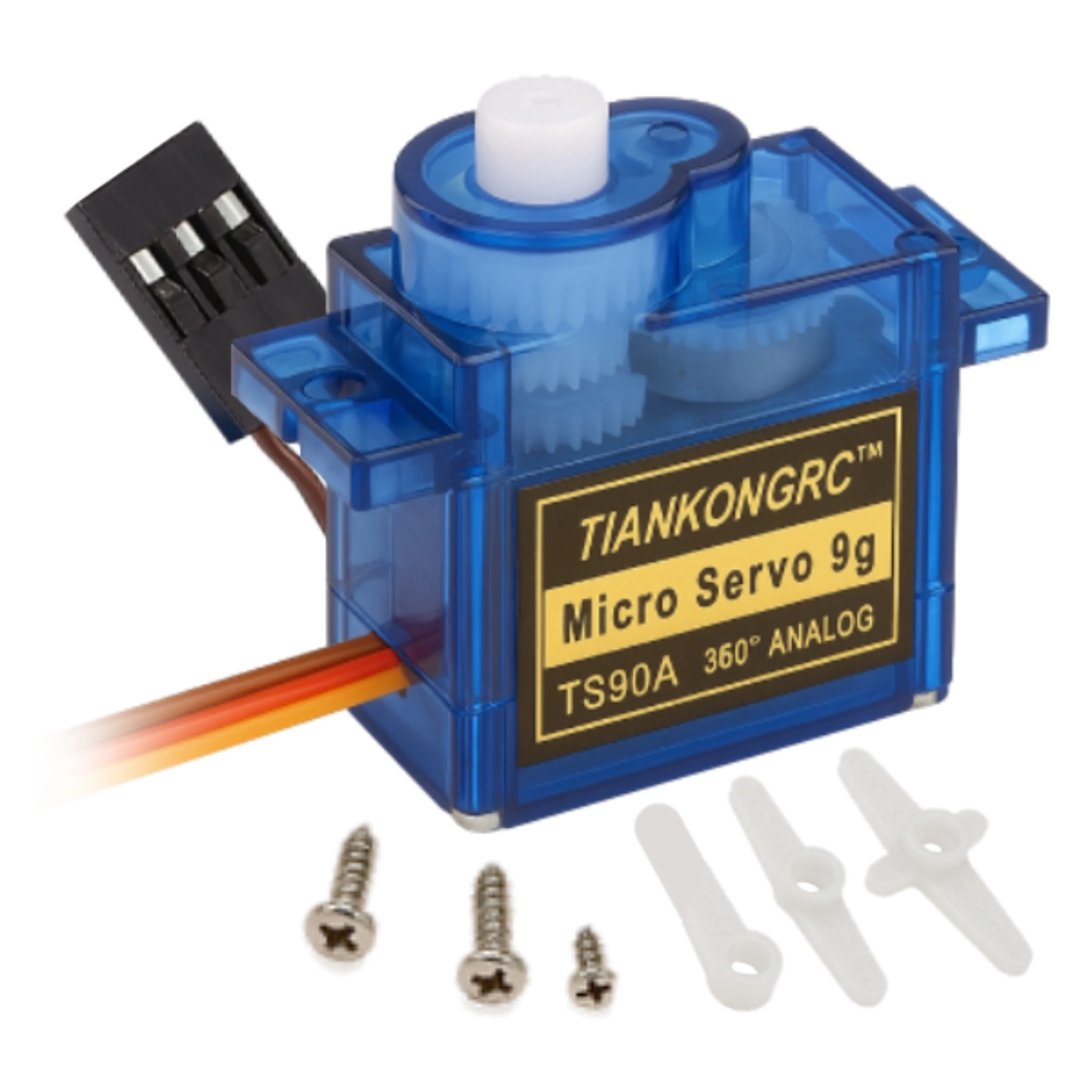

TowerPro TS90A servo – multi-turn (360 degrees)

Micro servo weighing only 9g, but high strength and speed. 360-degree rotary servo for use in robotics, for example. Multi-turn servo – rotates in a circle without stopping. Known for their reliability and precision, TowerPro servos enjoy considerable popularity and trust among users

Thanks to PWM control, the servo can be controlled by a micro controller such as Arduino. This makes it possible to use this servo in projects based on micro controllers.

Technical data

• Torque: 1.8 kg/cm (4.8v)
• Weight: 9g
• Speed: 0.12 s/60st – about 120 RPM – 5V
• Operating voltage: 4.5V – 6V
• Cog material: plastic
• Housing: plastic
• Connector: servo type JR
• Bearing: None

Included

• TowerPro TS90A servo – multi-turn (360 degrees)
• 3 orbits
• orbital screw
• 2 mounting screws
