Description

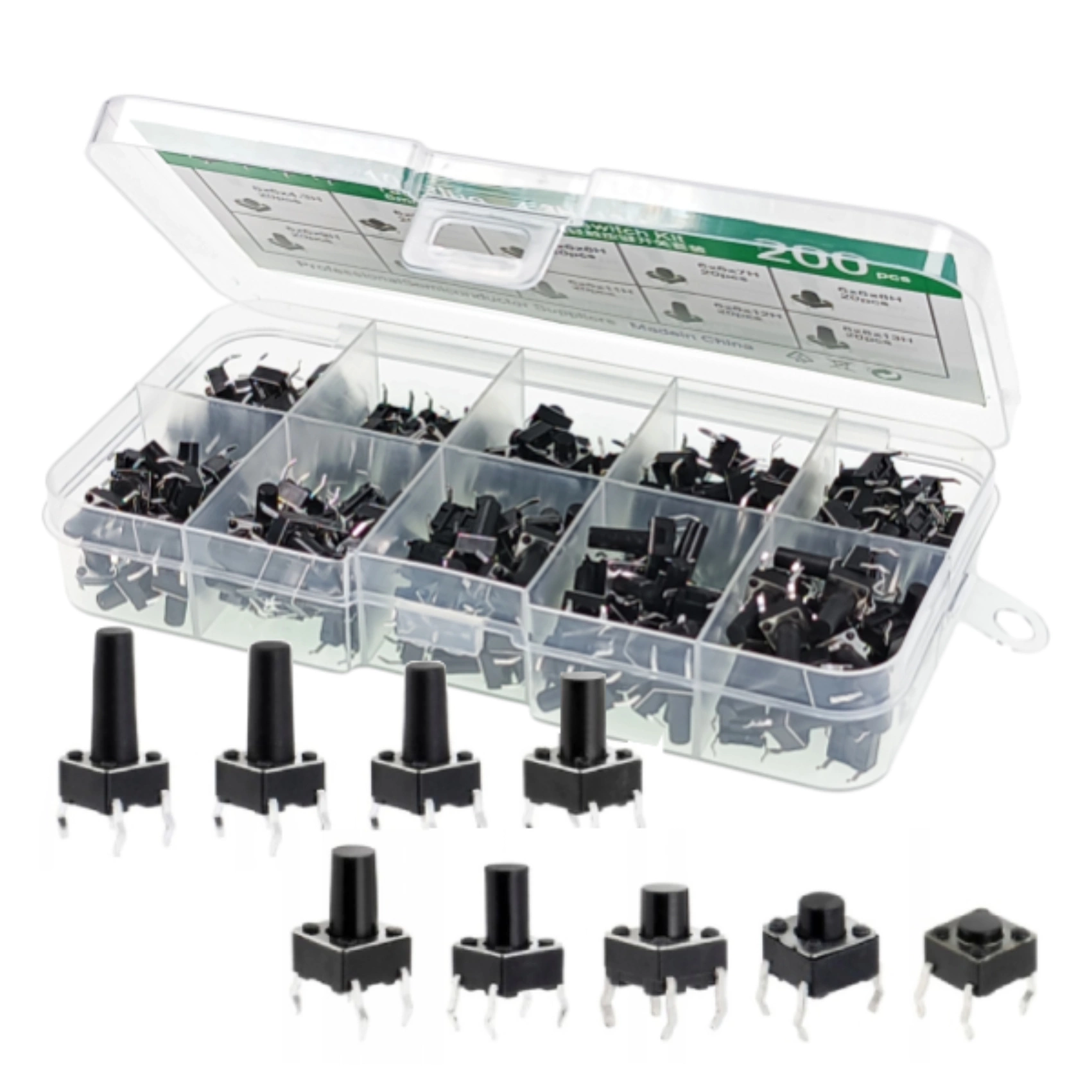

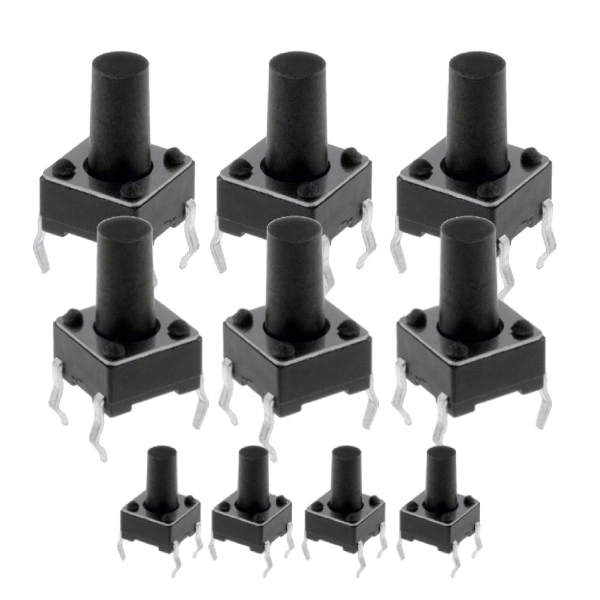

TACT microstick 6×6 8mm 10 pieces
Tact switches are some of the basic electronic components that can be found in almost every digital circuit.
Technical data
| Manufacturer | NINIGI |
| Switch type | microswitch |
| Number of stable positions | 1-position |
| Contact configuration | SPST-NO |
| DC contact load capacity (with resistive load) | 0.05 A / 12 VDC |
| Assembly | THT |
| Switching power | 1N |
| Body dimensions | 6 x 6mm |
| Height of the button (measured from the PCB) | 8mm |
| Switching method | OFF-(ON) |
| Shape of the key | round |
| Raster of leads | 4.5×6.5mm |
| Operating temperature | -25…70°C |
| Button color | black |
| Outputs | printable, simple |
| Contact resistance max. | 50mΩ |
| Insulation resistance min. | 100MΩ |
| Soldering temperature | 250°C |
Included
- TACT 6×6 8mm microstick – 10pcs
