Description

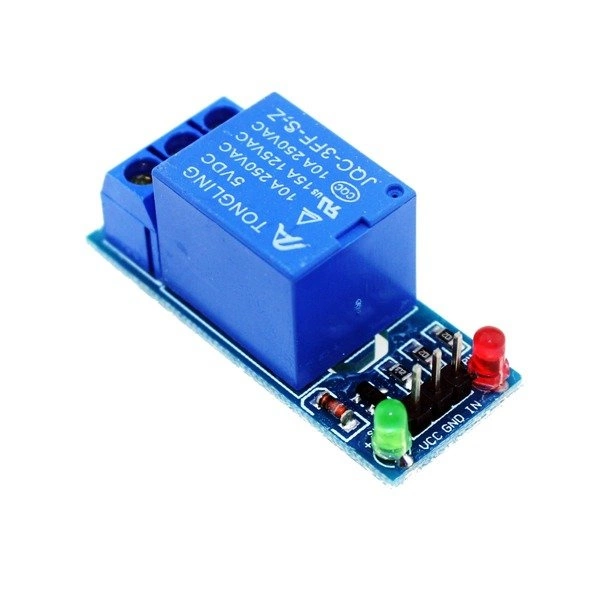

Relay module 1 channel – 5V – 10A/250V – LED control

Universal version of the modul with 5V relay, signaling LEDs for 10A/250VAC. The circuit is capable of controlling the actuators using the ports of the microcontroller or any runner kit.

The module is supplied with 5V to the corresponding VCC and GND pins.

Relay activation is indicated by the relay channel operation status LED.

The module is switched on by applying the LOW state, i.e. ground to the signal inputs In1.

Product features

• SRD-05 relay module with coil powered by 5V
• The module allows the operation of actuators drawing up to 10A using the ports of a microcontroller or any Arduino runner kit
• Application for contact boards, arduino, runtime modules, etc.
• In order to work, it is necessary to connect the power supply of the relay and the control signal in the form of cephalic.
• lOW state switching
• Indicator lights
• Application as: Switch for electrical devices – such as motors, lighting controller, actuator controller

In addition, we used the product for construction of a simple battery discharger project.

Technical data

• VCC supply voltage: 5 V
• Relay SRD-05VDC-SL-C (documentation)
• Coil voltage: 5 V
• Maximum contact voltage: 250 VAC
• Maximum current: 10 A
• Plate dimensions 44x12x22 mm

Note

Connection:

• The module has three input leads
  • DC+ 5V power supply
  • DC- power ground
  • IN. – input

Included

• Relay module 1-channel – 5V – 10A/250V – 1pc.
