Description

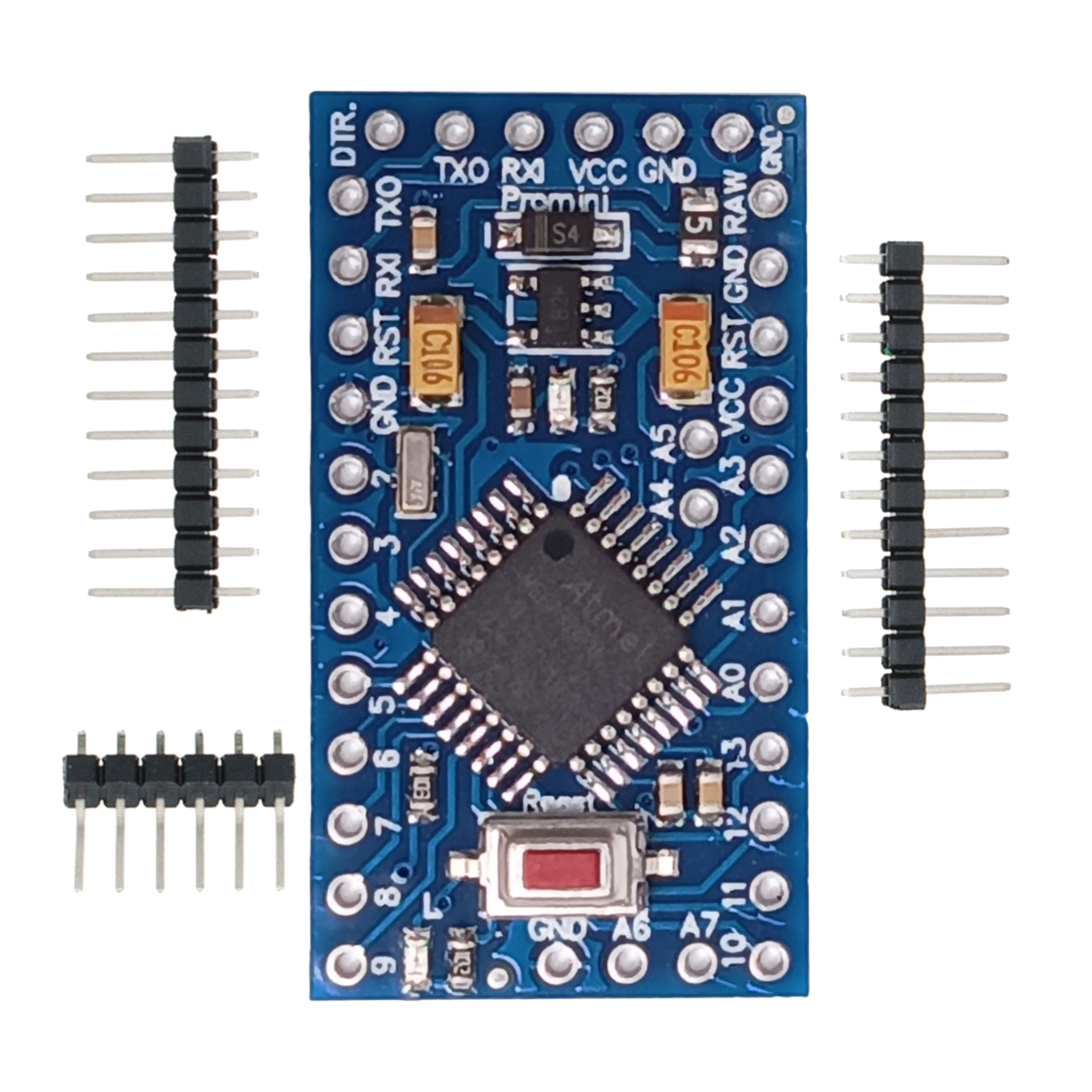

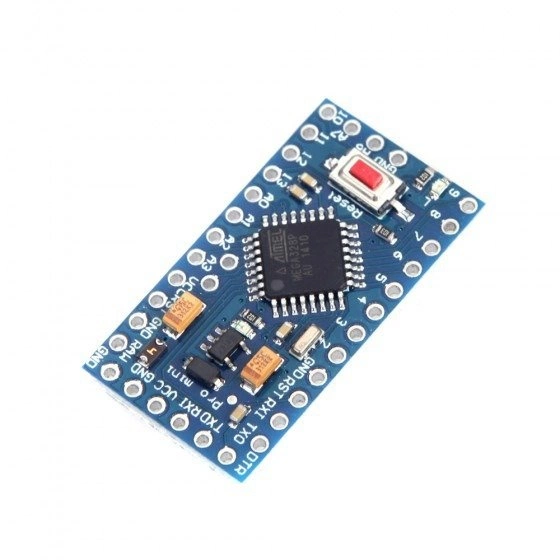

Mini 328 Pro – The perfect solution for your microprocessor projects!

Mini 328 Pro is a universal module with ATmega328P microcontroller, which will work well for many of your microprocessor projects. Thanks to its small size, it will fit perfectly into the finished projects without compromising their compactness.

The module is compatible with the Arduino PRO MINI 5V 16MHz project, making it extremely functional and versatile. The microcontroller has a bootloader preloaded, so all you need for programming is a UART programmer, such as a universal converter module with USB – UART RS232 output.

We have used the Mini 328 Pro to build various projects. One of them is DIY temperature sensor with alarm, long-range thermostat! Check out what other possibilities the Mini 328 Pro gives you!

• The Pro Mini, like the UNO, is based on the popular Uno module
• It has an Atmega328P microcontroller.
• The board contains an ATmega328 chip, equipped with 14 digital inputs/outputs, 6 of which can be used as PWM outputs (e.g. servo control) and 7 as analog inputs (for voltage measurement), but can also act as additional digital pins.
• Works with voltages of 5 V.
• It is clocked with a 16 MHz clock signal.
• Switch for manual reset
• This version has no soldered connectors – so the board can keep its small size.

• Supply voltage: 5V
• Microcontroller: ATmega328P – 16 MHz
• Ports – I/O pins: 14
• Number of analog inputs: 7
• Number of PWM outputs: 6
• Serial interfaces: UART, SPI, I2C
• External and internal interrupts
• Protection against the flow of too much current
• Module made on 0.8 mm thick laminate
• Weight less than 2 g.
• pin spacing 2.54mm (can be mounted in contact boards)
• Dimensions: 33 x 18 mm
• 32kB flash memory
• 1kB EEPROM
• 1kB SRAM
• 2 8bit timers/counters
• 1 timer/counter 16bit

• Pro Mini 328 – 5V/16MHz – ATmega328P with bootloader – Bascom AVR – 1 pc
• Pin plugs – 1 set
