Description

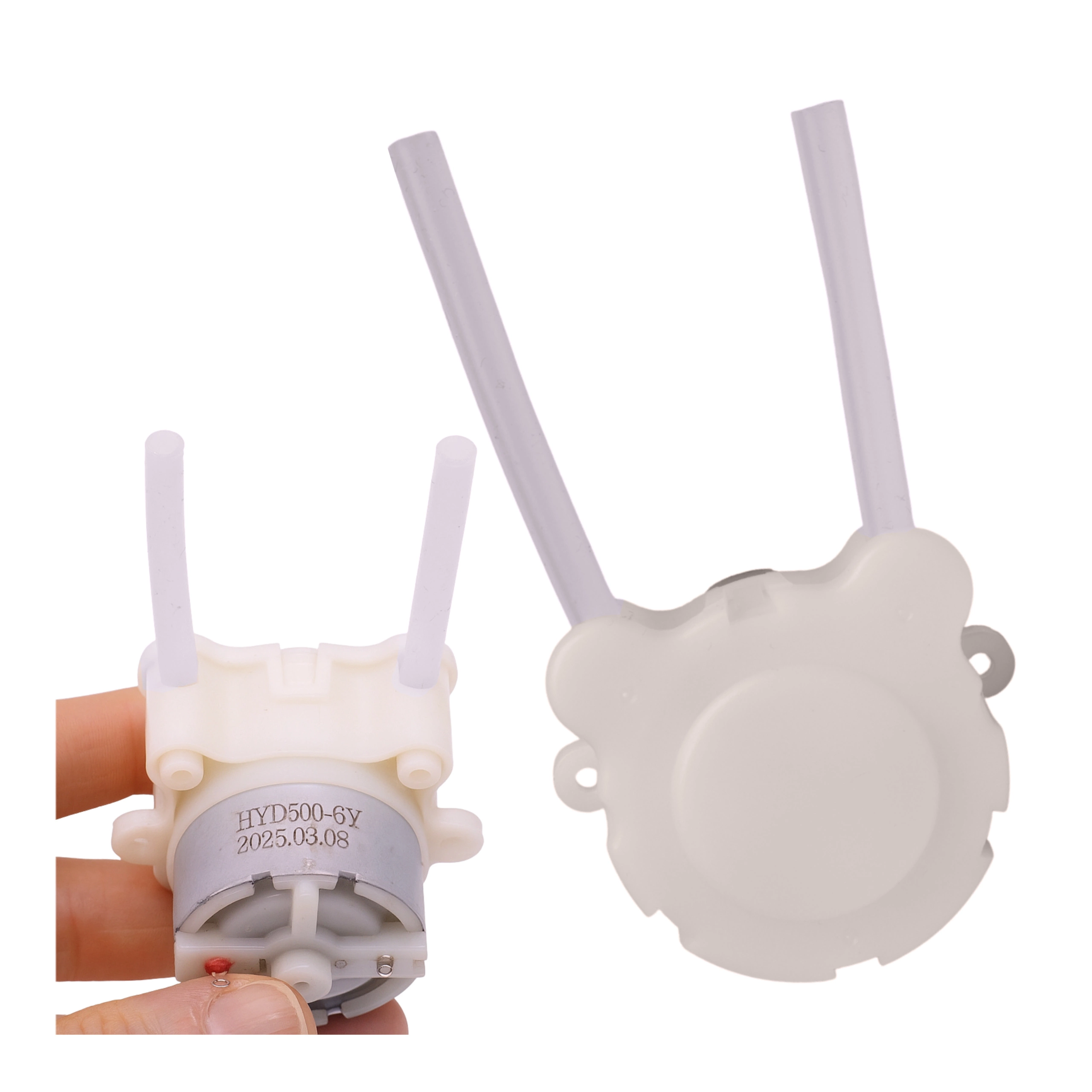

Peristaltic Mini Dispensing Pump 6V – Peristaltic pump with silicone tube

Mini Peristaltic Pump – DC 3.7V / 6V: Precise and Safe Dispensing of Liquids

• Looking for a compact and precise solution for dispensing liquids?
• Our 3.7V / 6V DC powered Mini Dosing Pump is the perfect tool for you.
• Equipped with a silicone tube, this peristaltic pump ensures that the liquid being pumped does not come into contact with the pump components, making it fully sealed and safe.
• Ideal for aquarium and medical applications, as well as in the chemical industry.

• Material: Engineering plastics
• Length of Silicone Cable: Ok. 25cm
• Rated Voltage: DC from 3.7V to 6V
• Current Intake: 3V – 400mA, 6V – 540mA
• Engine: DC brush with gearbox
• Number of Satellites: 3 pcs.
• Performance: 1L – 4 min
• Dimensions: Diameter: 32 mm, Height: 44 mm
• Diameter of Mounting Holes: 2.5mm
• Mounting Hole Spacing: 44mm
• Silicone Tube Diameter: Inner: 3.6 mm / Outer: 5 mm

Advantages of Peristaltic Pumps:

1. Precision Dosing: Ability to accurately program the amount of liquid pumped.
2. Versatility: Ideal for a variety of applications, from aquariums to medical equipment and the chemical industry.
3. Safety: No contact between the liquid and the components of the pump ensures complete tightness and safety.
4. High Performance: The pumping rate of the liquid is 1L per 4 minutes.
5. Easy Assembly: Mounting holes and compact dimensions facilitate installation in various configurations.

Applications of Peristaltic Pumps:

• Aquariums
• Medical equipment
• Chemical industry
• Dosing of fertilizers and cleaning agents
• Disinfection systems

Included

• Mini Dosing Pump with DC motor and gearbox
• Silicone tube with a length of 25 cm

Method of Assembly and Use

1. Mount the pump in the desired location, using the mounting holes.
2. Connect the silicone tubing to the pump.
3. Connect the power supply according to the rated voltage.
4. Start and program the amount of pumped liquid as needed.

Maintenance and Storage

For optimum performance, it is recommended to regularly clean the silicone tube and check the tightness of the connections.

We also offer silicone tubing for peristaltic pumps, and among them used in this pump 3/5mm silicone tube, you can buy the right length of tubing and avoid extra joints.
