Description

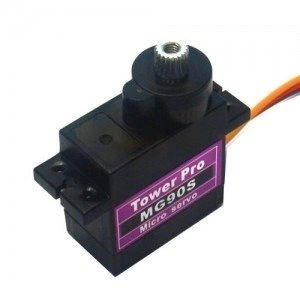

TowerPro MG-90S servo – 13g – 1.8kg/cm

TowerPro MG-90S servo replacement

• The TowerPro MG-90S servo is the equivalent of the SG-90S servo in the micro family.
• It can replace servos such as Hitec HS-82 MG or HS-81.
• Precision SG90S Tower Pro servo with metal gear, light weight and good performance is ideal for modeling and robotics applications.
• It features precise operation, higher torque than traditional servos and a low weight of 13g..
• Fast and high strength, ideal for standard applications.
• Perfect for aerobatic ailerons, glider rudders, as a throttle servo in internal combustion models and for small cars in 1:16 and 1:18 scale.

Technical specifications of the MG-90S servo

• Weight: 13.4 g
• Torque: 1.8 kg (4.8V), 2.2 kg (6V)
• Rotation angle: up to 180º
• Speed: 0.1 sec./60° (4.8v), 0.08 sec./60° (6V)
• Operating voltage: 4.8V – 6.0V
• Operating temperature: 0 – 55ºC
• Connection cable length: 250 mm
• dimensions of the SG-90S servo

Included

• Servo
• Orcas
• Orb screw
• Mounting screws
