Description

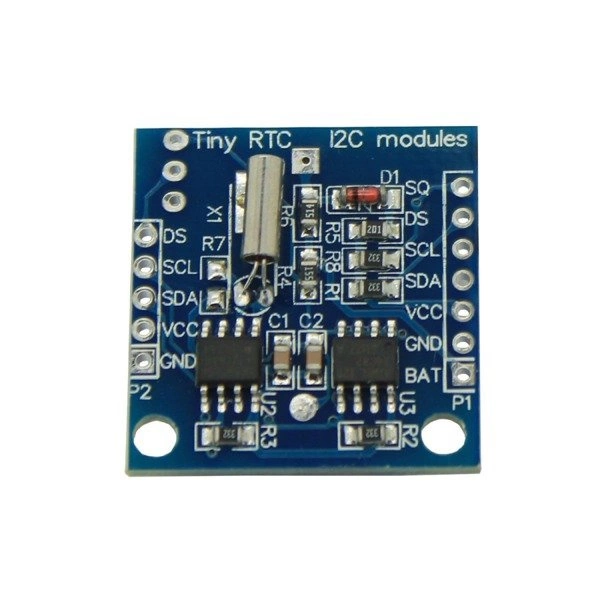

DS1307 RTC time module for Arduino – real time clock

RTC module with DS1307 real-time clock.

RTC Module Features:

• DS1307 real-time clock module with battery backup.
• Allows you to read the time in the form of hour, minute and second and the date: month day, year.
• The communication interface is the I2C bus (SDA and SCL lines)
• The data refresh rate is 1 Hz (1 second).
• Available data:
  • Time: hour (AM, PM), minute, second
  • Date: month, day, year
• Accurate calendar to the year 2100
• The module has goldpin leads, allowing it to be connected to any runner kit or dedicated circuit board using available wires.
• Compatible with uNO arduino i MEGA 2560
• lED signaling
• Application for contact boards, runtime modules, arduino, etc.

Parameters of the DS1307 RTC clock module

• DS1307 real-time RTC clock module
• Connected to 24C32 serial memory
• Built-in quartz 32.768kHz
• Chip DS1307, 24C32
• Power supply 5V built-in basket for (CR2032) (no battery included)
• Current consumption: less than 500 nA
• Communication interface: I2C / TWI (SDA, SCL)
• Refresh rate: 1 Hz (1 second)
• Public internal memory: 56 bytes
• Dimensions: 28×28 mm

RTC DS1307 connection

• The 5 V supply voltage is connected to the pin marked with the same symbol.
• The I2C bus should be connected to the leads of the
  • SCL – clock line
  • SDA – data line.
• The SQW pin is the output of a rectangular signal with the selected frequency
• GND is the ground of the circuit.
