Description

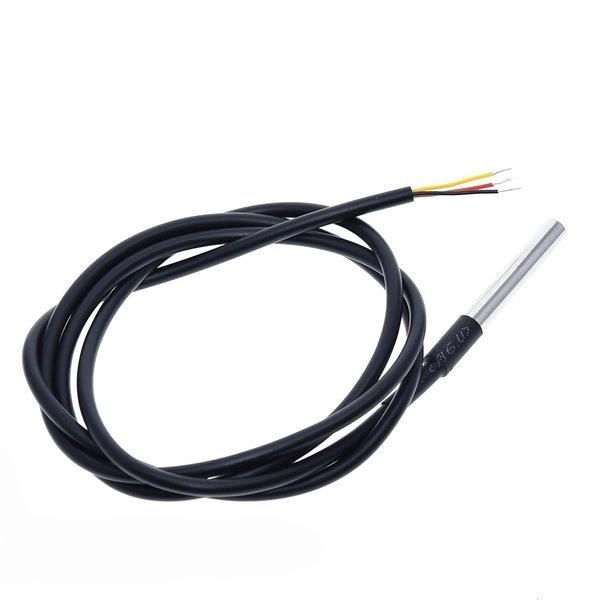

Waterproof Maple 18B20 Temperature Sensor with Cable

Universal digital temperature sensor (DALLAS DS18B20 clone) in a waterproof case with cable.

Ideal for building Arduino circuits with temperature measurement.

Digital circuits operate on the OneWire communication bus through which we can connect multiple sensors to a single digital pin, such as Arduino. This is possible because each sensor has its own serial number.

In addition, sensors can be connected via two wires in parasite mode.

Application

• temperature monitoring in cold stores, refrigerators,
• gMP monitoring system,
• monitoring of the telecommunications equipment room,
• building automation,
• monitoring the temperature of the warehouse
• environmental monitoring,
• monitoring the temperature of the production process,
• air conditioning monitoring,
• incubation temperature control,
• temperature measurement in the culture,
• temperature monitoring in the greenhouse,
• etc…

Product features

• Made of high quality stainless steel.
• The sensor is resistant to moisture, water and rust.
• Ability to connect signals from multiple sensors to a single digital pin
• Simplicity of implementation thanks to ready-made libraries
• All 18B20 digital temperature sensors have unique numbers, and the temperature recording device identifies the corresponding temperature sensor by number.

Technical data

• Power supply: 3.3 – 5V
• Temperature measurement: -55°C to 90ºC
• Specification: 18B20
• output: 1-Wire (OneWire)
• oUTPUTS:
• VCC-red
• GND-black
• DATA-white / yellow
• Sensor dimensions:
• Length: 50mm
• Diameter: 6mm
• Stainless steel housing
• Cable length 1m

Included

• Temperature sensor 18B20 waterproof cable 1mb – 1 pc
