Description

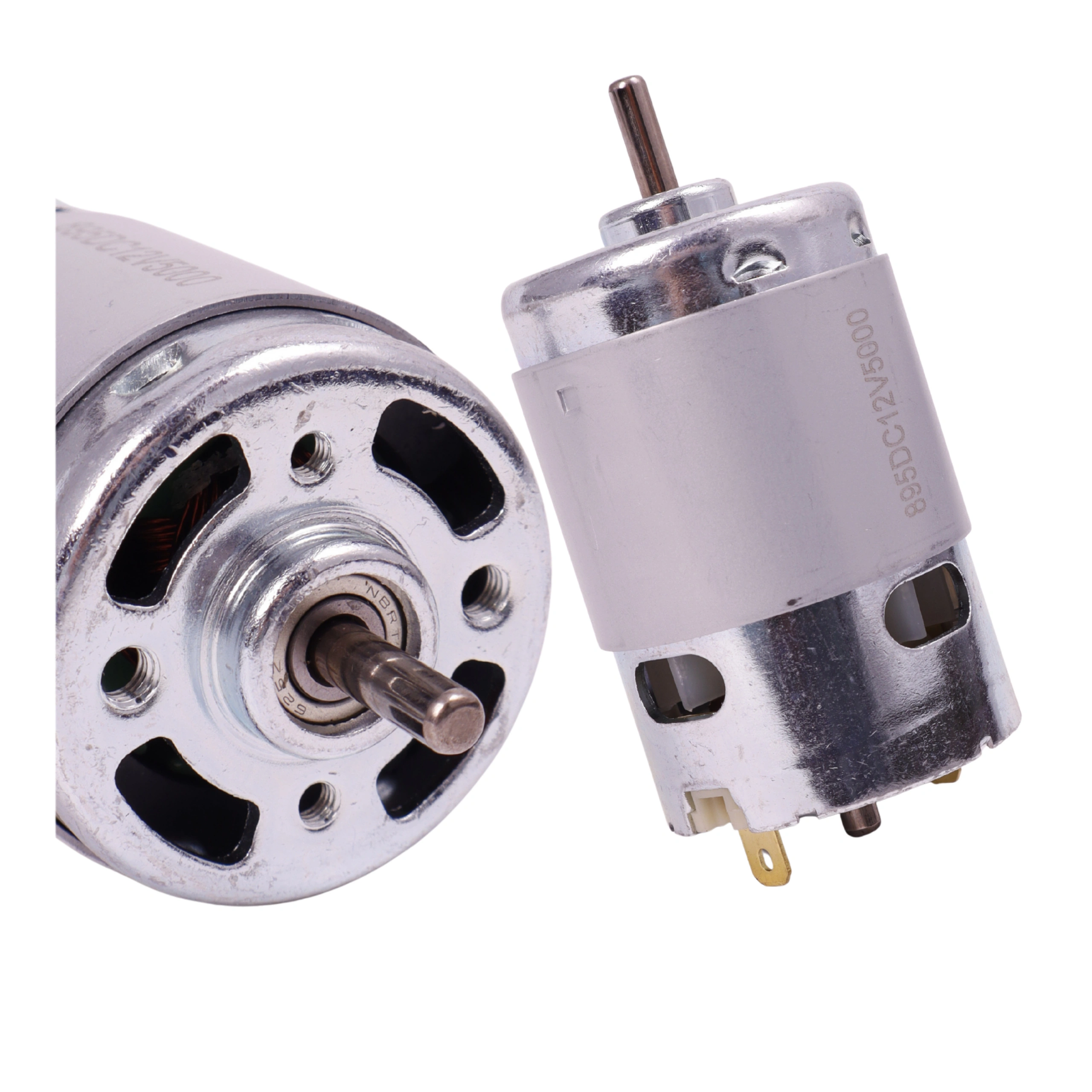

DC 12-24V class 775 brush motor

double bearing – high torque

Power and Performance in One

Introducing 775 class brush motor, ready to take on any challenge. It operates in the 12-24V range, giving you the flexibility to choose your voltage. With the ability to reach speeds of up to 20000 rpm./min. you are assured that your project will run smoothly and efficiently.

Robust Construction, High Torque

For you who conjure up a variety of designs, our engine is a key component. Equipped with a 5mm diameter axle, it is compatible with many components. Two bearings guarantee stable operation, and high torque allows even heavier loads to be moved.

The Perfect Choice For Creative Projects

This engine is the dream of every hobbyist builder. Whether you’re building a model, an electronic circuit or a razor, our product will give you the power and precision you need. Adjustable voltage will allow you to adjust the speed to meet the requirements of your project.

Create, Construct, Refine

Your workshop, your rules! This engine is not just a component – it is a tool that will enable you to create, construct and improve. Give vent to your creativity, experiment and create new solutions. Let each project be an expression of your commitment and skills.

Our dC 12-24V class 775 brush motor is an invaluable part of your workshop. High performance, robust design and customizable speed make it the perfect tool for your projects. Create, experiment and perfect your designs with this versatile engine. You will also buy from us the bed that fits this engine. Also read about other products for electronics!

Features of the 775 motorcycle:

Typical DC motors consist of the following components:

• rotor, through which the outwardly leading axis passes,
• winding, which is wound on the rotor,
• the stator surrounds the rotor, which contains permanent magnets,
• commutator, which switches the windings on the rotor,
• brushes supplying power to the commutator.
• built-in fan provides cooling to the winding

RS775 DC20V Specifications:

• Shaft length: 16 mm (axis length above step level)
• Shaft diameter: 5 mm
• Motor diameter: 42 mm
• Motor length: 66.5 mm
• Weight: 343g
• Mounting hole spacing: 29mm
• Mounting holes diameter: 2x M4
• Speed: 20000RPM at 24V
• Speed: 12000RPM at 12V
• No-load current consumption: 0.92A(12V), 1.46A(24V)
• Max. current consumption: 10A
• Rated power: 100W
