Description

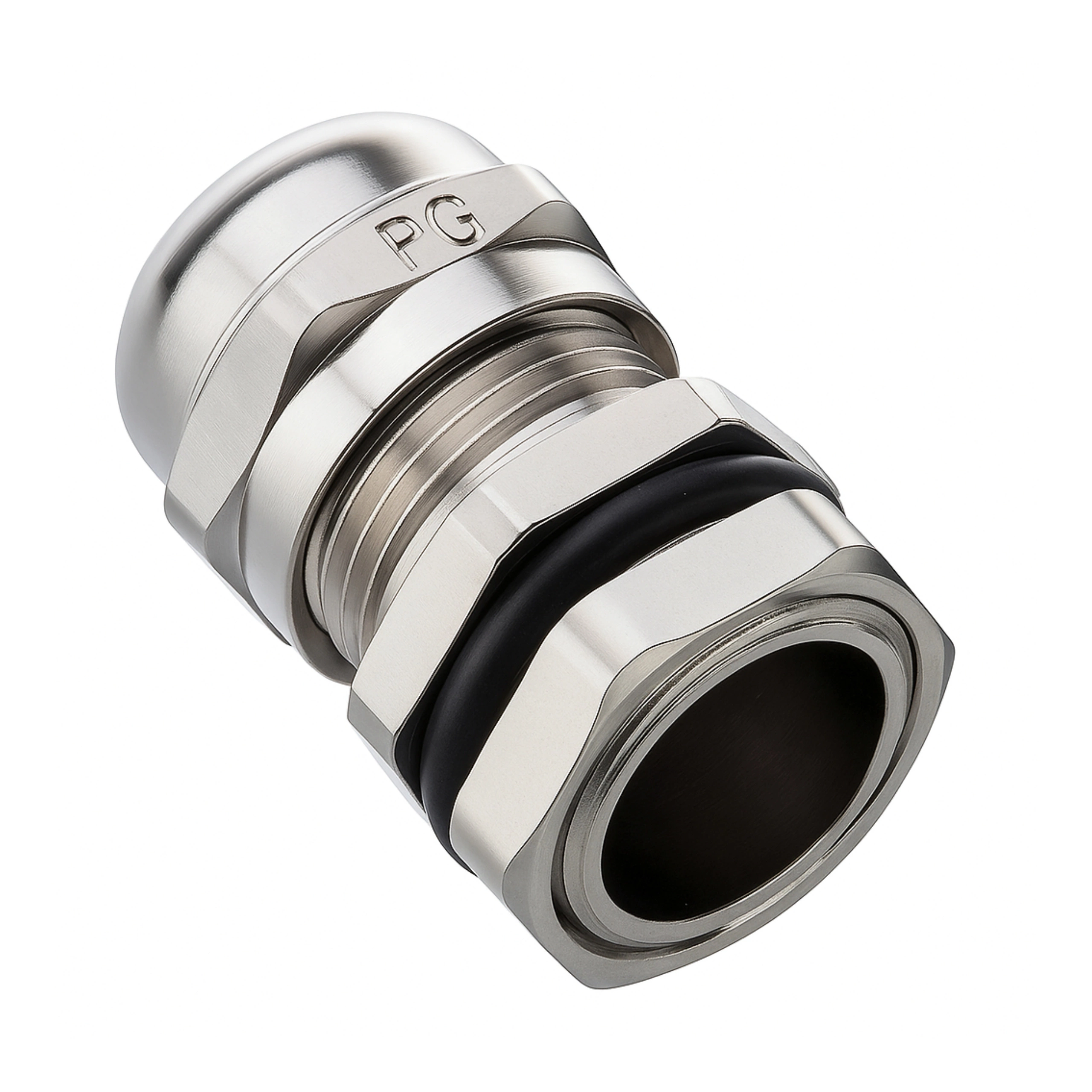

Cable gland PG11 IP68 – Insulating metal gland with nut

Isolation chokes are commonly used to insert wires and cables inside electrical, telecommunications and data communications enclosures, such as:

• cans,
• distribution boxes,
• control cabinets,
• electrical appliances,
• industrial installations,
• boxes.

Cable gland is designed to seal cable penetrations through electrical equipment housings in industrial installations. Insulation gland with nut provides protection against negative external influences such as dust, dirt, moisture in IP68 degree of protection.

Technical data

• Degree of protection: IP68
• Operating temperature: -40 ºC to +100 ºC (briefly up to +120 ºC)
• Dimensions:
• H: ∼20mm
• GL: 8mm
• AG: 18mm
• Wire diameter: 5 – 10mm
• Material: nickel-plated brass, seal and O-ring made of NBR elastomer
• Color: silver
• Weight: ∼25g

Included

• Cable gland PG11 IP68 – Insulating metal gland with nut – 1pc.
