Switching Button for Circuits – Full Control of Your Device

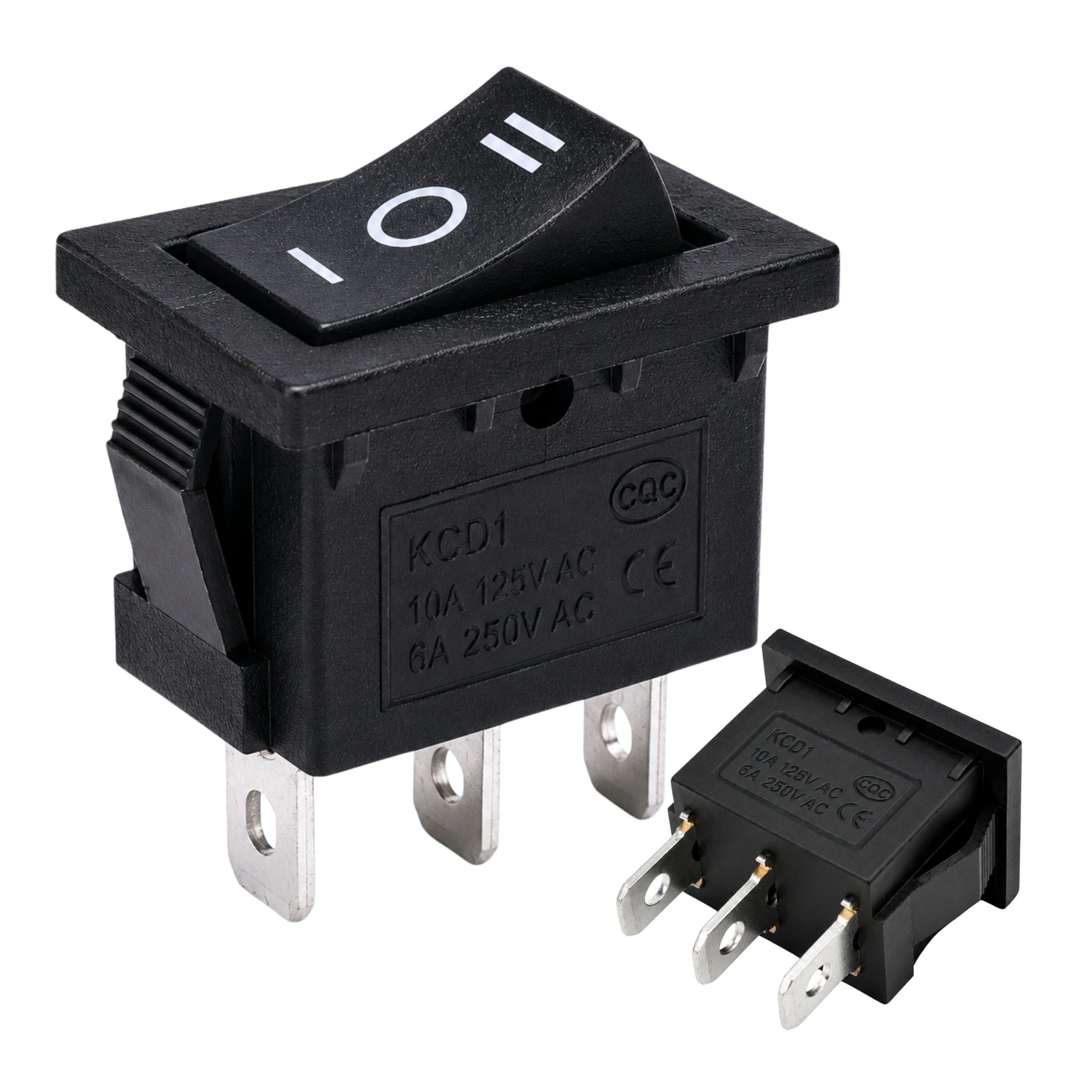

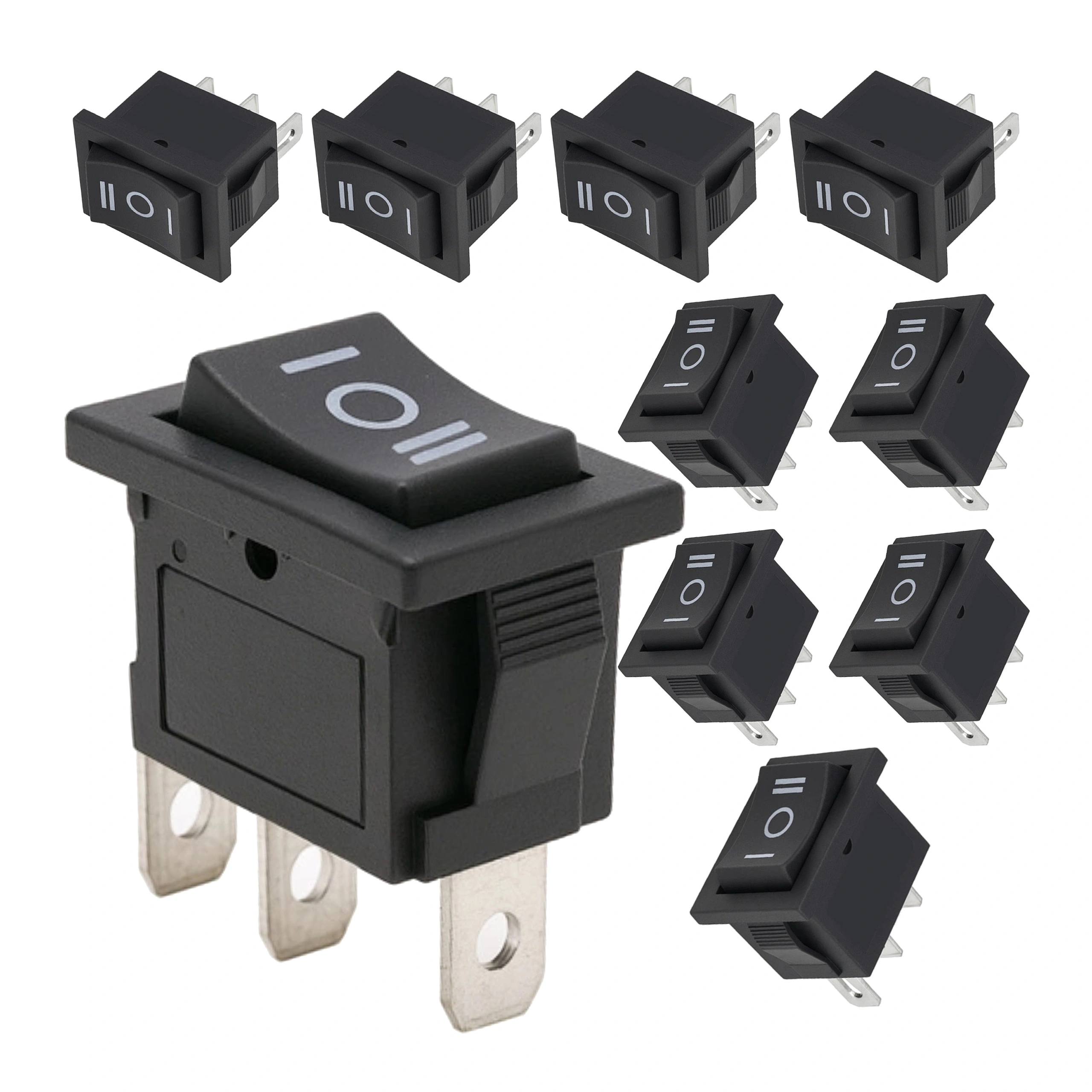

Rocker switch type KCD1 is a high-quality electrical component designed for a wide range of applications. Model (ON)-OFF-(ON) Bistable.

Thanks to its compact 21×15 mm size, the switch can be easily installed in confined spaces, such as equipment enclosures, control panels or DIY structures.

• Action type: (ON) – OFF – (ON) Bistable
• Type: Bistable
• Switch type: rocker
• Model: KCD1
• Installation dimensions: 21 x 15 mm
• Housing material: plastic (non-flammable)
• Contact: 3-pin (SPDT type – Single Pole Double Throw)
• Assembly: snap-on (panel)
• Operating voltage: up to 250V AC
• Rated current: up to 6A

• Precise control – bistable function
• Compact size – easy installation even in small devices
• Versatility of application – For electronics, automotive, power supplies, tools and DIY projects
• Clear markings – position symbols (I-0-II) for easy identification of functions
• Mechanical strength – durable pins and solid construction

• Control of electric motors (change of direction of rotation)
• Workshop and laboratory power supplies
• Machine and equipment control panels
• DIY projects – model making, consumer electronics

• Before installation, disconnect the device from the power source
• Check voltage and current compatibility with switch parameters
• Mount the switch in a dry environment, away from moisture
• Avoid overloading the contacts – use with relays at high currents
• Regularly check the stability of the assembly and the condition of the connectors

KCD1 (ON)-OFF-(ON) is a proven and versatile choice for anyone who needs a reliable, durable and easy-to-install switch. Thanks to its versatility, it will work well in professional and amateur projects, guaranteeing safety and functionality.
