Description

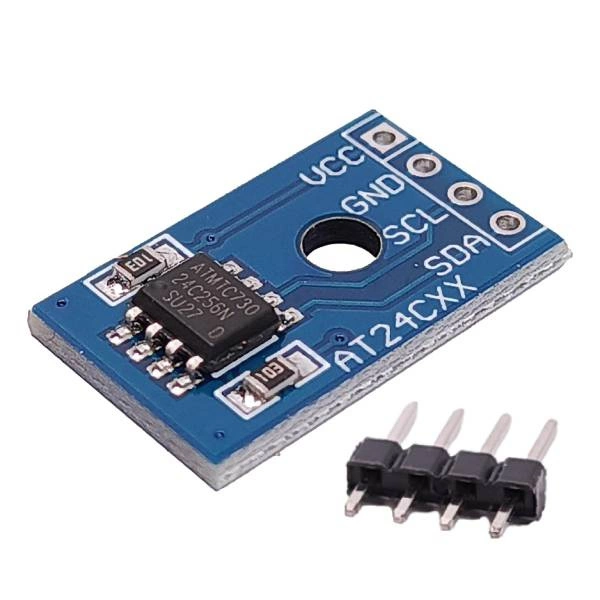

AT24C256 256Kb memory interface

If you need some memory in Arduino projects and the EEPROM in the ATmega chip is too limited, this I2C EEPROM module is the best choice. It is based on the AT24C256 EEPROM chip with a capacity of 256 Kb. Communicates with Arduino via I2C bus, facilitates much easier data storage and enhances Arduino’s design capabilities.

Technical data

• Supply voltage: 1.5 – 5V
• Memory used: 24C256
• Output: goldpin connector r=2.54mm
• Number of pins: 4
• Dimensions: 20x12mm
• Cable length: 20cm
• Chip above base code: 2ECL capacity 256kb
• CHIPs’ AT24C256 on the motherboard;
• There are built-in I2C pull-up resistors on the board for communication;
• All pins are guided and labeled;
• Read more about EEPROM on Wikipedia
• Arduino EEPROM Guide J. Eng.
• Using Arduino with I2C EEPROM – J. Eng.
• AT24C256 Arduino Demo Code

Included

• AT24C256 memory interface – 24C256 – EEPROM on I2C – Arduino – 1 pc.
