Description

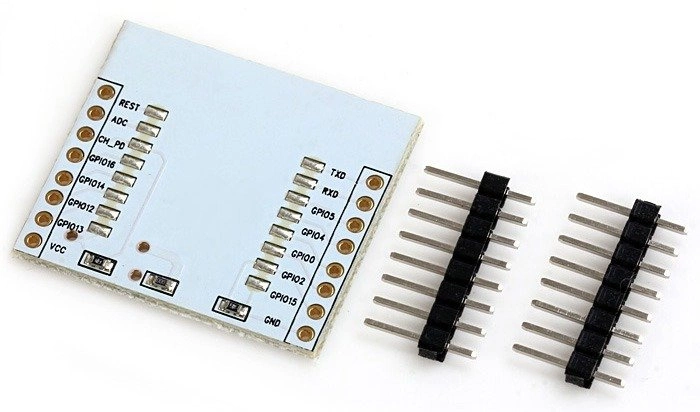

Adapter for ESP8266 Modules

Adapter dedicated to ESP-07, ESP-08, ESP12 modules, etc. The leads are described on the board.

Modules without an adapter are not suitable for use on a contact board. With the adapter, we can use this device much more easily and expand the scope of its use in various projects. You can also solder the ESP-03 module, but the pin-outs will change!!!

Product features

• CH_PD input permanently wired to VCC through a 10k resistor (ESP module starts as soon as power is applied)
• GPIO15 input is connected to GND through a 10k resistor. To upload new software, short GPIO0 to ground during startup.
• Soldering fields prepared for soldering the module

Included

• Adapter for ESP8266 Modules – 1pc.
• Pins to be soldered

NO ESP8266 module included!

In this post on our BLOG you will learn how to add ESP8266-based modules to the Arduino environment so that you can write code for them in the simple Arduino IDE environment.
